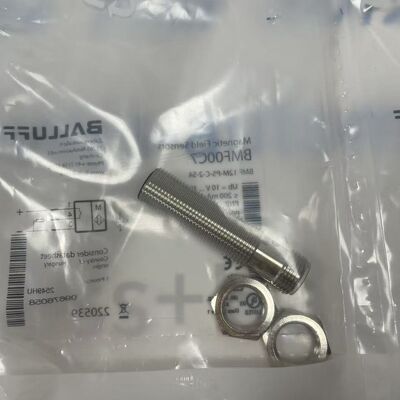

Balluff BMF00C7 Sensor | Magnetic, Cylindrical, M8, 8mm, DC 3-Wire, PNP, Reed, IP67

Balluff BMF00C7 Sensor | Magnetic, Cylindrical, M8, 8mm, DC 3-Wire, PNP, Reed, IP67
Balluff BMF00C7 Sensor | Magnetic, Cylindrical, M8, 8mm, DC 3-Wire, PNP, Reed, IP67

Large Image :  Balluff BMF00C7 Sensor | Magnetic, Cylindrical, M8, 8mm, DC 3-Wire, PNP, Reed, IP67 Get Best Price

Product Details:
Place of Origin: DE
Brand Name: BALLUFF
Certification: ATEX
Model Number: BMF00C7
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Magnetic M8 cylindrical sensor

,

PNP 3-wire reed sensor

,

IP67 rated M8 sensor

Balluff BMF00C7 Sensor | Magnetic, Cylindrical, M8, 8mm, DC 3-Wire, PNP, Reed, IP67

Balluff BMF00C7 specifications. Magnetic field sensor, M8, 8mm, DC 3-wire PNP, reed contact, IP67, for cylinder position.

Product Overview

The Balluff BMF00C7 is a magnetic field sensor (reed sensor) designed for non-contact detection of the position of pneumatic cylinder pistons equipped with permanent magnets. It features an M8 threaded barrel, an 8mm sensing distance, and a DC 3-wire PNP (sourcing) output with a normally open (NO) function. Housed in a nickel-plated brass body with IP67 protection, it is a reliable and cost-effective solution for end-position sensing in pneumatic systems.

Technical Specifications (Sensor)

Parameter

Specification

Manufacturer​

Balluff GmbH

Series​

BMF (Magnetic Field Sensors)

Model​

BMF00C7

Product Type​

Magnetic Field Sensor (Reed Contact)

Housing​

M8 x 1 Thread, Nickel-plated brass

Sensing Distance​

8 mm (from sensor face to magnet)

Actuation​

By permanent magnet (integral in cylinder piston)

Output Type​

PNP, 3-wire

Output Function​

Normally Open (NO)

Mounting​

In cylinder slot or via mounting clip

Technical Specifications (Electrical/Mechanical)

Parameter

Specification

Operating Voltage​

10-30V DC

Output Current​

≤ 200 mA

Switching Frequency​

≤ 1000 Hz

Voltage Drop​

≤ 2.5V

Connection​

Pre-wired, 2 m PVC cable

Housing Material​

Nickel-plated brass

Protection Rating​

IP67

Operating Temperature​

-25 to 85°C (-13 to 185°F)

Certifications​

CE, cULus

Key Features

  • Non-Contact Sensing:​ Wear-free detection of magnetic pistons

  • Simple Installation:​ Easy mounting in standard T-slot of pneumatic cylinders

  • PNP Normally Open Output:​ Standard sourcing output for direct PLC input

  • Robust Construction:​ Nickel-plated brass housing and IP67 rating for harsh environments

  • Wide Operating Temperature:​ Suitable for a broad range of industrial conditions

  • Long 2m Cable:​ Facilitates flexible installation

  • Reliable Reed Technology:​ Proven, robust switching element

  • Cost-Effective:​ Economical solution for position sensing on cylinders

Applications

  • End position sensing on pneumatic cylinders (ISO/VDMA standard)

  • Detection of piston position in clamping, lifting, and feeding applications

  • Integration into automated machinery and material handling systems

  • General factory automation requiring reliable cylinder position feedback
