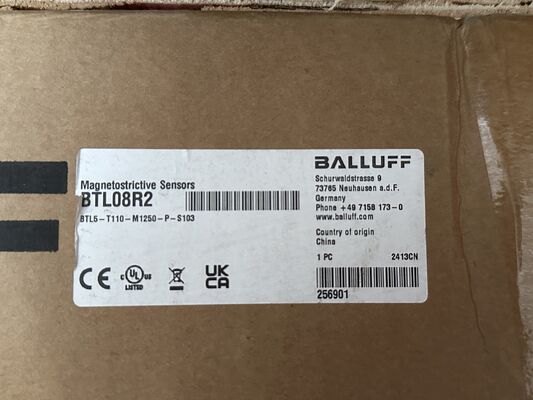

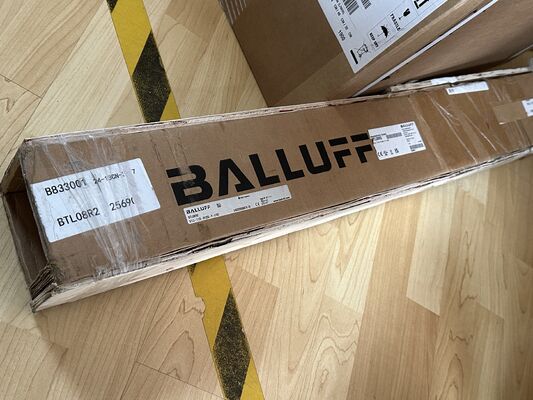

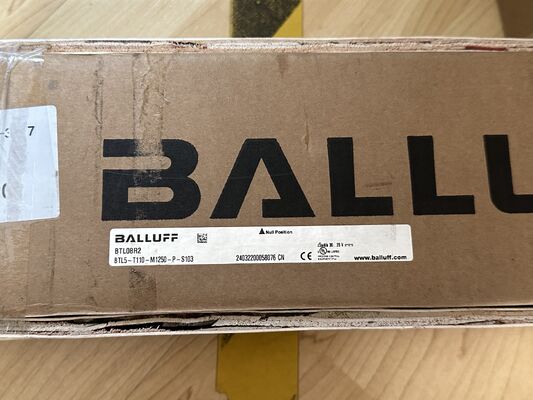

Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67

Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67
Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67

Large Image :  Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 Get Best Price

Product Details:
Place of Origin: DE
Brand Name: BALLUFF
Certification: ATEX
Model Number: BTL08R2
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Balluff BTL08R2 magnetostrictive transducer

,

linear incremental transducer 0-1000mm

,

24V DC transducer IP67 rated

Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67

Balluff BTL08R2 specifications. Magnetostrictive linear position sensor, incremental, 0-1000mm, 24V DC, IP67, for motion control.

Product Overview

The Balluff BTL08R2 is a magnetostrictive linear position sensor designed for incremental motion control and positioning applications. It provides a standard incremental square wave output (RS422 level) and features a measuring range of 0-1000mm. Operating on 24V DC and housed in a robust, IP67-rated stainless steel body, it offers reliable, non-contact position feedback for hydraulic and pneumatic cylinders, as well as linear motion systems in industrial automation.

Technical Specifications (Sensor)

Parameter

Specification

Manufacturer​

Balluff GmbH

Series​

BTL (Magnetostrictive Position Sensors)

Model​

BTL08R2 (Incremental variant)

Product Type​

Magnetostrictive Linear Position Sensor (Incremental)

Measuring Principle​

Magnetostrictive

Measuring Range​

0 to 1000 mm (other ranges available)

Output Signal​

Incremental, square wave (RS422)

Linearity Error​

≤ ±0.02% of full scale (typical)

Repeatability​

≤ ±1 μm

Technical Specifications (Electrical/Mechanical)

Parameter

Specification

Supply Voltage​

24V DC (10-30V DC)

Current Consumption​

≤ 100 mA

Resolution​

Configurable (e.g., 1 μm, 5 μm, 10 μm)

Max. Counting Frequency​

≥ 100 kHz

Signal Types​

A, /A, B, /B, R, /R (RS422 differential)

Housing Material​

Stainless steel (1.4305)

Process Connection​

M18 x 1.5 thread (standard)

Protection Rating​

IP67

Operating Temperature​

-40 to 85°C (-40 to 185°F)

Vibration/Shock Resistance​

High

Certifications​

CE, cULus

Key Features

  • Incremental RS422 Output:​ Standard digital interface for motion controllers and drives

  • High Precision:​ Excellent linearity and repeatability for accurate positioning

  • Robust Stainless Steel Housing:​ For demanding industrial environments

  • Non-Contact Measurement:​ Maintenance-free, wear-free operation

  • High Resolution & Speed:​ Configurable resolution and high counting frequency for dynamic applications

  • Wide Temperature Range:​ Suitable for harsh operating conditions

  • Differential Signals:​ Noise-immune transmission for reliable data

  • Easy Integration:​ Standard M18 mounting and pre-defined signal assignment

Applications

  • Position feedback in servo-hydraulic and electro-mechanical cylinders

  • Press brake and machine tool axis positioning

  • Automated material handling and robotics

  • General motion control requiring incremental position feedback

Balluff BTL08R2 Transducer | Magnetostrictive, Linear, Incremental, 0-1000mm, 24V DC, IP67 0
