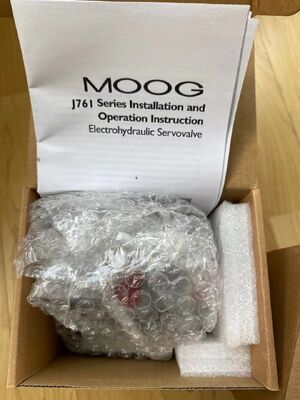

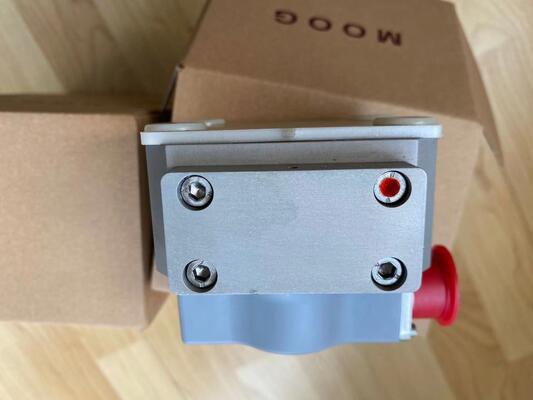

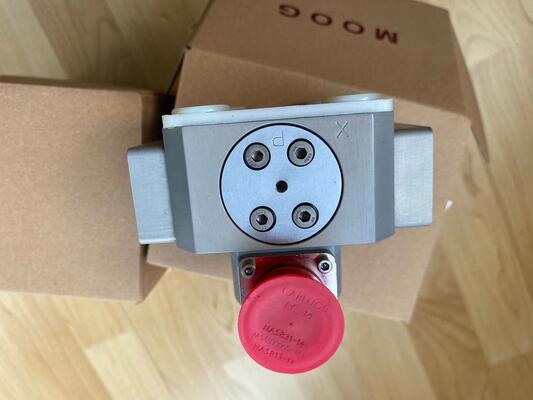

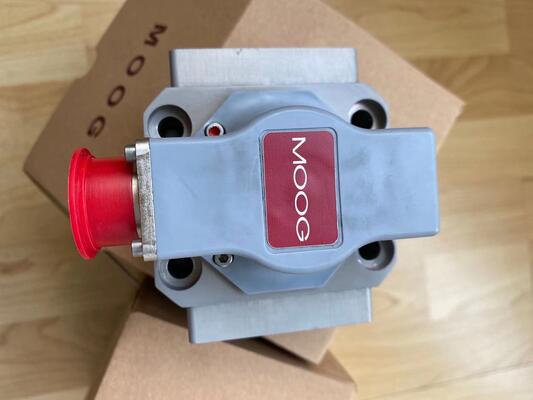

Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact

Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact
Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact

Large Image :  Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact Get Best Price

Product Details:
Place of Origin: US
Brand Name: MOOG
Certification: ATEX
Model Number: J761-003
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact

Moog J761-003 servo valve specifications. Direct-drive proportional valve, 1 l/min, 210 bar, 24V DC, for compact hydraulic control.

Product Overview

The Moog J761-003 is a compact, direct-drive proportional (DDP) servo valve designed for precise flow or pressure control in space-constrained hydraulic systems. It utilizes a linear force motor to directly position the spool, eliminating the need for a pilot stage. The valve provides a rated flow of 1 liter per minute at 35 bar pressure drop and operates at a maximum system pressure of 210 bar. Its simple, robust design offers excellent reliability and dynamic performance for low-flow applications.

Technical Specifications (Valve)

Parameter

Specification

Manufacturer​

Moog Inc.

Series​

Direct Drive Proportional Valves (D660/J760 Series)

Model​

J761-003

Product Type​

Direct-Drive Proportional (DDP) Servo Valve

Rated Flow​

1 l/min at 35 bar ΔP (with standard spool)

Max. Operating Pressure​

210 bar

Hysteresis​

≤ 3% (typical)

Null Leakage​

Low (typical for DDP design)

Spool Overlap​

Nominally zero lapped

Port Size​

6 mm (SAE 4) or metric threads (model specific)

Technical Specifications (Electrical/Performance)

Parameter

Specification

Actuator​

Linear Force Motor (Direct-Drive)

Input Signal​

±10V DC or 4-20mA (model specific)

Coil Resistance​

Typically 20 Ω (single coil)

Power Consumption​

~10-15 W (typical)

Frequency Response (-3 dB)​

≥ 30 Hz (typical, varies with load)

Step Response Time (10-90%)​

≤ 20 ms (typical)

Linearity​

≤ 5%

- Operating Temperature​

-40 to 100°C (-40 to 212°F) fluid

Filtration Requirement​

≤ 10 μm (absolute)

Fluid Compatibility​

Mineral-based hydraulic oils (ISO VG 32, 46)

Electrical Connection​

DIN 43650 Form A (industry standard)

Certifications​

CE

Key Features

  • Direct-Drive Design:​ No pilot stage required, simplifying the hydraulic circuit and improving reliability

  • Compact & Lightweight:​ Ideal for applications with strict space and weight constraints

  • High Pressure Capability:​ Up to 210 bar for demanding systems

  • Fast Response:​ Good dynamic performance for closed-loop control

  • Low Hysteresis:​ Provides accurate and repeatable control

  • Simple Integration:​ Standard electrical and port interfaces

  • Robust Construction:​ Suitable for industrial environments

  • Low Power Consumption:​ Energy-efficient operation

Applications

  • Control of small hydraulic cylinders in automation and robotics

  • Pilot stage for larger proportional valves

  • Tension control in winding/unwinding systems

  • Pressure control in test stands and simulators

  • Metering and dosing applications in fluid power systems

Moog J761-003 Valve | Servo, Proportional, Direct-Drive, 1 l/min, 210 bar, 24V DC, Compact 0
