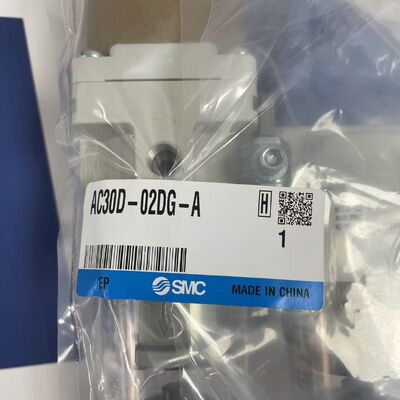

SMC AC30D-02DG-A Cylinder | Standard, 30mm Bore, 2mm Stroke, Double-acting, Non-cushion, Magnetic

Large Image : SMC AC30D-02DG-A Cylinder | Standard, 30mm Bore, 2mm Stroke, Double-acting, Non-cushion, Magnetic Get Best Price

Product Details:

Place of Origin:	JP
Brand Name:	SMC
Certification:	ATEX
Model Number:	AC30D-02DG-A
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:	1	Ambient Temperature:	-
Electrical Rating:	G	Certifications:	S

SMC AC30D-02DG-A Cylinder | Standard, 30mm Bore, 2mm Stroke, Double-acting, Non-cushion, Magnetic

SMC AC30D-02DG-A specifications. Standard pneumatic cylinder, 30mm bore, 2mm stroke, double-acting, magnetic, for short stroke.

Product Overview

The SMC AC30D-02DG-A is a compact, standard double-acting pneumatic cylinder from SMC's ACE series. It features a 30mm bore and a very short 2mm stroke. The cylinder is designed for precise, small-movement applications such as clamping, pressing, or positioning. It includes a magnetic piston for non-contact position sensing and operates without built-in cushioning, making it suitable for rapid, repetitive short strokes in automated systems.

Technical Specifications (Cylinder)

Parameter	Specification
Manufacturer	SMC Corporation
Series	ACE (Standard Air Cylinders)
Model	AC30D-02DG-A
Cylinder Type	Double-acting, Single-rod
Piston Diameter (Bore)	30 mm
Stroke Length	2 mm
Cushioning	None (Non-cushioned)
Piston Position Sensing	Magnetic piston (for use with magnetic sensors)
Rod End Thread	Male thread (for load attachment)

Technical Specifications (Performance/Mechanical)

Parameter	Specification
Operating Pressure	0.05 to 1.0 MPa (0.5 to 10 bar)
Theoretical Force at 0.6 MPa	424 N (advancing), 368 N (retracting)
Ambient/Media Temperature	-10 to 60°C (14 to 140°F)
Operating Medium	Clean, dry air (lubricated or non-lubricated)
Port Size	Rc 1/8
Speed	50 to 750 mm/s (without cushion)
Material, Barrel	Aluminum alloy, hard anodized
Material, Piston Rod	Stainless steel (SUS304)
Seals	NBR (Nitrile)

Key Features

Ultra-Short 2mm Stroke: Designed for precise, minimal linear movement
Double-Acting Operation: Provides controlled force in both extension and retraction
Magnetic Piston: Enables easy integration of position sensing switches
No Cushioning: Allows for very fast cycling in short-stroke applications
Compact Design: Saves space in machine layouts
Corrosion-Resistant Rod: Stainless steel piston rod for durability
Wide Pressure Range: Operates from 0.5 to 10 bar
Standard Ports: Rc 1/8 for easy pneumatic connection

Applications

Precision clamping and pressing operations
Small part ejection or positioning
Tool changers and fixture actuators
Gate control in molding or dispensing machines
Any automation task requiring a reliable, short-stroke linear actuator
