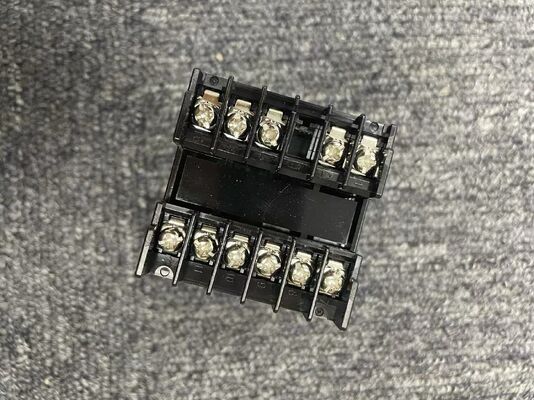

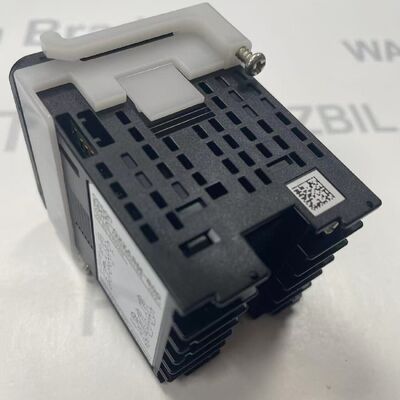

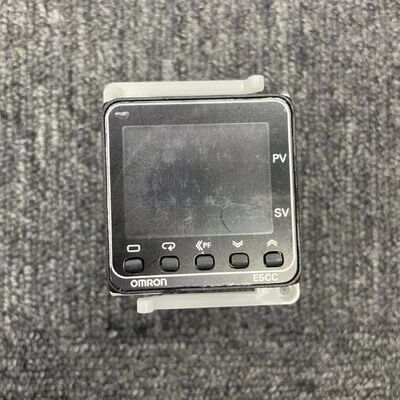

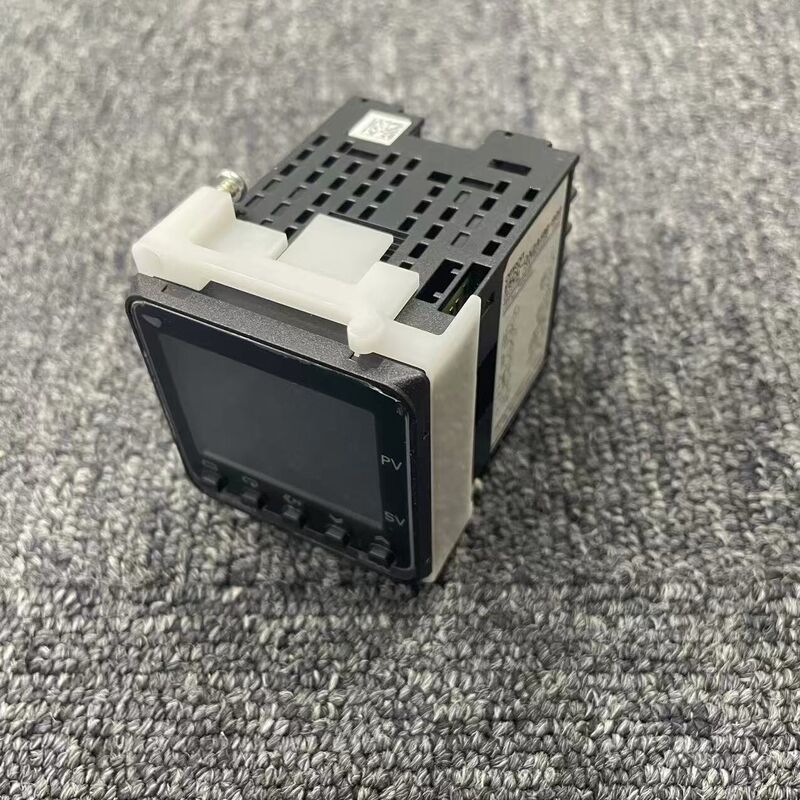

OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR

Large Image : OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR Get Best Price

Product Details:

Place of Origin:	CN
Brand Name:	OMRON
Certification:	ATEX
Model Number:	E5CC-QX2ASM-800
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

OMRON E5CC temperature controller

48x48mm temperature controller

100-240V AC temperature controller

OMRON E5CC-QX2ASM-800 Temperature Controller | 48x48mm, 100-240V AC, Relay + SSR

OMRON E5CC-QX2ASM-800 digital temperature controller specifications. 48x48mm DIN, universal input (TC/RTD), relay & voltage output, no communication.

Product Overview

The OMRON E5CC-QX2ASM-800 is a 48mm x 48mm digital temperature controller from the E5CC series. It features a universal input supporting thermocouples, Pt100, and analog signals, with dual outputs (relay + 12V DC for SSR) and two auxiliary alarm outputs. The "A" in the model denotes a 100-240V AC power supply, and the "-800" suffix indicates no communication function. It is designed for basic temperature control applications in industrial heating equipment.

Technical Specifications (Electrical & Control)

Parameter	Specification
Manufacturer	OMRON
Model	E5CC-QX2ASM-800
Power Supply	100–240 V AC, 50/60 Hz
Input Types	Thermocouple (K, J, T, E, etc.), Pt100/JPt100, Analog (4-20mA, 0-10V)
Control Output 1	Relay (SPST-NO) – AC250V 3A resistive
Control Output 2	Voltage Output (for SSR) – 12V DC PNP, 21 mA max
Auxiliary Outputs	2 points, Relay (SPST-NO) – AC250V 3A (typically for alarms)
Control Method	ON/OFF or 2-PID with Auto-tuning

Technical Specifications (Physical & Environmental)

Parameter	Specification
Panel Cutout	48 mm × 48 mm (DIN standard)
Depth Behind Panel	Approx. 60 mm
Display	Dual 4-digit LED (PV 15.2mm, SV 7.1mm)
Front Protection	IP66 (with gasket)
Operating Temp	-10 °C to +55 °C (non-condensing)
Communication	None (Local control only)
Event Input	2 points (for remote SP selection/run-stop)

Key Features

Universal Input: Compatible with a wide range of temperature sensors without hardware changes.
Dual Output: Allows direct relay control of small loads and SSR drive for heavy loads.
Compact Design: Shallow depth (60mm) saves space in control panels.
High Visibility: Large white LED display for easy reading.
Multi-SP Function: Stores up to 8 setpoints (SP0-SP7) for quick recipe changes.

Applications

Industrial ovens and furnaces
Plastic molding machine temperature control
Packaging machinery heat sealing
HVAC and industrial heating systems
