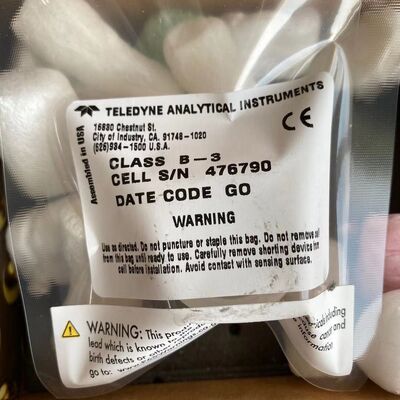

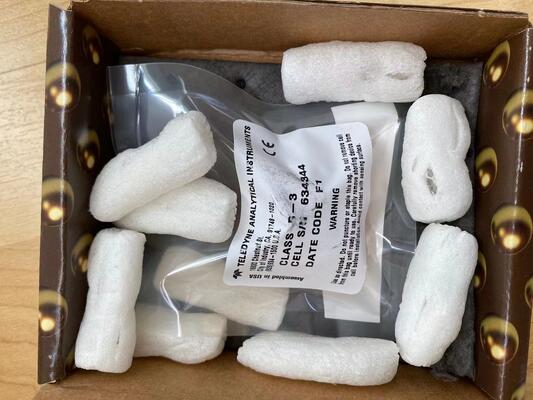

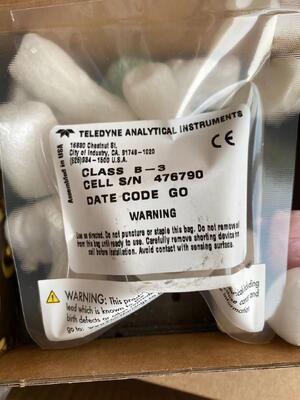

Teledyne CLASS B-3 | C06689-B3 Micro-Fuel Cell Oxygen Sensor

Large Image : Teledyne CLASS B-3 | C06689-B3 Micro-Fuel Cell Oxygen Sensor Get Best Price

Product Details:

Place of Origin:	US
Brand Name:	Teledyne
Certification:	ATEX
Model Number:	CLASS B-3
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:	1	Ambient Temperature:	-
Electrical Rating:	G	Certifications:	S

Teledyne CLASS B-3 | C06689-B3 Micro-Fuel Cell Oxygen Sensor

Teledyne CLASS B-3 (P/N C06689-B3) electrochemical oxygen sensor. Measures 0–100% O₂, 12-month life, for combustion flue gas and safety analyzers.

Product Overview

The Teledyne CLASS B-3 (Part Number C06689-B3) is a general-purpose micro-fuel cell oxygen sensor designed for percent-level oxygen measurement in industrial gas analyzers. It offers an optimal balance between fast response time and long service life, making it a standard replacement cell for combustion efficiency monitors, flue gas analyzers, and industrial safety instruments.

Technical Specifications (Performance & Electrical)

Parameter	Specification
Manufacturer / Series	Teledyne Analytical Instruments / CLASS B
Model / Part Number	CLASS B-3 (C06689-B3)
Sensor Type	Electrochemical Micro-Fuel Cell (Sealed)
Measurement Range	0 – 100 % O₂
Output Signal	235 – 355 µA (Current, proportional to O₂ partial pressure)
Response Time (T90)	≤ 13 seconds
Accuracy / Linearity	±2% of Full Scale
Expected Service Life	12 – 15 months (in normal use)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Housing Dimensions	Ø 1.25 inch (31.75 mm) × 0.75 inch (19 mm) thick
Sensing Area	Ø 0.7 inch (Large area to minimize condensation error)
Electrical Connection	2-Pin Gold Disk (Concentric foil contacts)
Operating Temperature	0 °C to +45 °C
Sample Flow	Diffusion-controlled (Unaffected by flow rate)
Warm-Up Time	< 2 minutes
Shelf Life	6 months (unused, stored properly)

Key Features

Maintenance-Free Design: Sealed, disposable construction with no electrolyte refilling required.
True Zero: Generates zero current in the absence of oxygen; requires no zero gas.
Flow Insensitive: Performance is unaffected by variations in sample gas flow rate.
Robust Performance: Stable operation in gas mixtures containing hydrogen and helium.

Applications

Combustion flue gas analysis (boilers, furnaces)
Industrial safety and oxygen deficiency monitors
Process gas purity verification
Laboratory gas mixture analyzers

[citation:web1][citation:web2][citation:web4]
