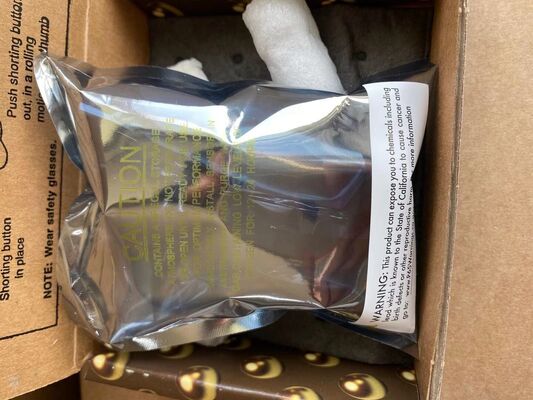

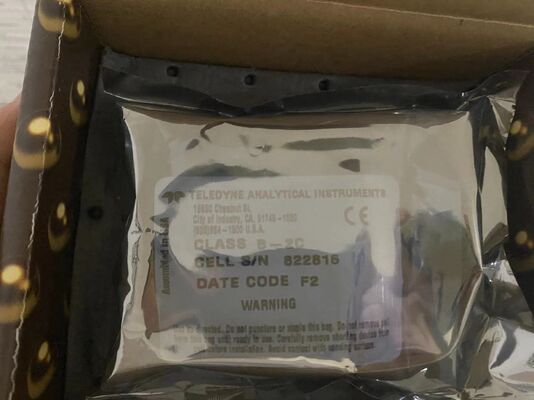

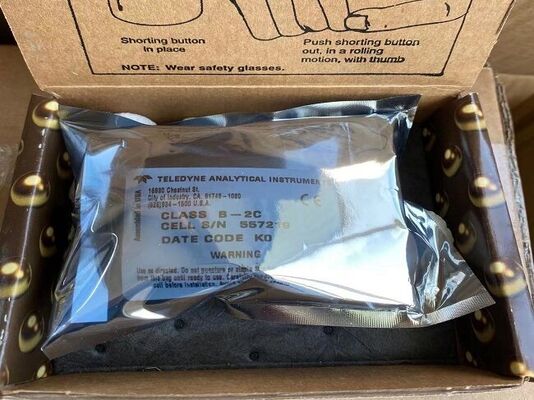

Teledyne CLASS B-2C | C06689-B2C Micro-Fuel Cell Trace Oxygen Sensor

Large Image : Teledyne CLASS B-2C | C06689-B2C Micro-Fuel Cell Trace Oxygen Sensor Get Best Price

Product Details:

Place of Origin:	US
Brand Name:	Teledyne
Certification:	ATEX
Model Number:	CLASS B-2C
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:	1	Ambient Temperature:	-
Electrical Rating:	G	Certifications:	S

Teledyne CLASS B-2C | C06689-B2C Micro-Fuel Cell Trace Oxygen Sensor

Teledyne CLASS B-2C (P/N C06689-B2C) electrochemical micro-fuel cell. Measures 0–100 ppm O₂ in H₂/He/inert backgrounds, 18–24 month life for gas purity analyzers.

Product Overview

The Teledyne CLASS B-2C (Part Number C06689-B2C) is a trace oxygen sensor based on micro-fuel cell technology. It is engineered for high sensitivity in hydrogen, helium, and inert gas applications where CO₂ is absent. This sensor is a direct-fit component for analyzers requiring precise ppm-level monitoring in semiconductor manufacturing, inert gas blanketing, and gas purity verification.

Technical Specifications (Performance & Electrical)

Parameter	Specification
Manufacturer / Series	Teledyne Analytical Instruments / CLASS B
Model / Part Number	CLASS B-2C (C06689-B2C)
Sensor Type	Sealed Electrochemical Micro-Fuel Cell
Typical Measurement Range	0 – 100 ppm O₂ (0–1000 ppm configurable)
Output Signal	~295–625 µA (Linear current, proportional to O₂)
Response Time (T90)	≤ 7 seconds
Accuracy / Linearity	±2% of Full Scale (typical)
Expected Service Life	18 – 24 months (in normal operation)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Housing Dimensions	Ø 1.25 inch (31.75 mm) × 0.75 inch (19 mm) thick
Sensing Area	Ø 0.7 inch (Large area, minimizes condensation error)
Electrical Connection	2-Pin Gold Disk (Concentric foil contacts)
Operating Temperature	0 °C to +45 °C
Background Gas	H₂, He, Inert Gases (CO₂-free recommended)
Warm-Up Time	< 2 minutes
Shelf Life (Unused)	6 months (when stored properly)

Key Features

Trace O₂ Detection: Optimized for low-ppm measurement in challenging gas backgrounds like hydrogen and helium.
Maintenance-Free: Sealed, disposable design with no electrolyte refilling required.
True Zero: Generates zero current in the absence of oxygen; requires no zero gas.
Flow Insensitive: Diffusion-based operation is unaffected by sample flow rate variations.

Applications

Hydrogen and helium gas purity analysis
Inert gas blanketing and purging systems (N₂, Ar)
Semiconductor fabrication and high-purity gas cabinets
Gas analyzer modules for industrial safety

[citation:web1][citation:web4]
