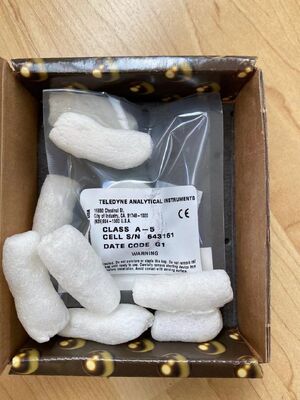

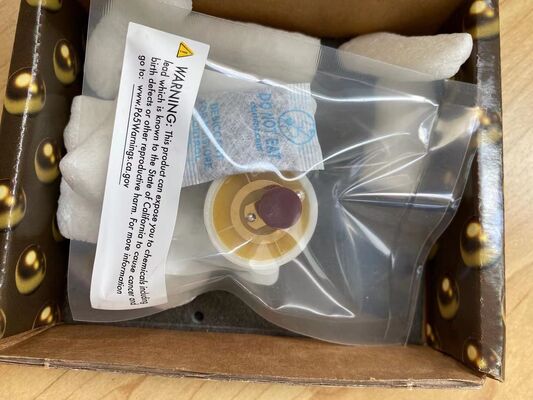

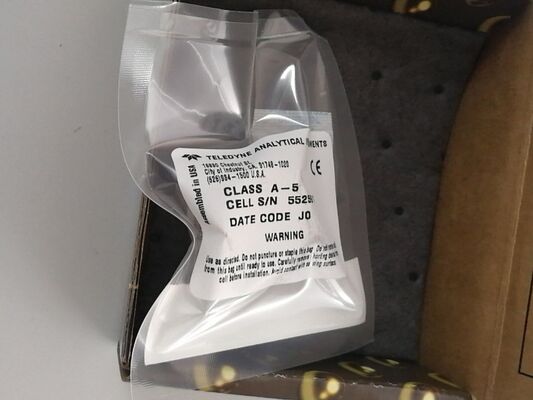

Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds

Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds
Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds

Large Image :  Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds Get Best Price

Product Details:
Place of Origin: US
Brand Name: Teledyne
Certification: ATEX
Model Number: C06689-A5
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

Teledyne CLASS A-5 | C06689-A5 Micro-Fuel Cell %O2 Sensor for CO2 Backgrounds

Teledyne CLASS A-5 (P/N C06689-A5) electrochemical oxygen sensor. Measures 0–25% O₂ in 0–100% CO2 gas streams, 45s response, for flue gas and combustion analysis.

Product Overview

The Teledyne CLASS A-5​ (Part Number C06689-A5) is a micro-fuel cell (MFC) oxygen sensor​ specifically designed for percent-level oxygen measurement in gas streams containing high concentrations of carbon dioxide (CO₂). It is the standard replacement cell for combustion flue gas analyzers, boiler efficiency monitors, and process gas systems​ where acid gas resistance and stable performance in CO₂-rich environments are critical.

Technical Specifications (Performance & Electrical)

Parameter

Specification

Manufacturer / Series​

Teledyne Analytical Instruments / CLASS A

Model / Part Number​

CLASS A-5 (C06689-A5)

Sensor Type​

Sealed Electrochemical Micro-Fuel Cell

Measurement Range​

0 – 25 % O₂ (Standard Calibration)

Background Gas​

0 – 100 % CO₂​ (Specifically designed for CO₂-rich streams)

Output Signal​

Current (µA), proportional to O₂ partial pressure

Response Time (T90)​

≤ 45 seconds (90% of full scale)

Expected Service Life​

~6 – 12 months (depending on O₂ exposure)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Dimensions​

Ø 1.25 inch (31.75 mm) × 0.75 inch (19 mm) thick

Sensing Area​

Ø 0.7 inch (Large area to minimize condensation error)

Electrical Connection​

2 concentric foil contacts (rear-mounted)

Operating Temperature​

0 °C to +50 °C (32°F to 122°F)

Sample Flow​

Diffusion-controlled (Unaffected by flow rate)

Warm-Up Time​

< 2 minutes

Key Feature​

CO₂-tolerant design, maintenance-free

Key Features

  • CO₂ Resistant:​ Specifically formulated for accurate O₂ measurement in flue gases and other streams containing 0–100% carbon dioxide.

  • Maintenance-Free:​ Sealed, disposable design with no electrolyte refilling required.

  • True Zero:​ Generates zero current in the absence of oxygen; requires no zero gas.

  • Flow Insensitive:​ Diffusion-based operation is unaffected by sample flow rate variations.

Applications

  • Combustion flue gas analysis (boilers, furnaces, heaters)

  • Process gas monitoring in CO₂-rich environments

  • Industrial safety and oxygen deficiency monitors in confined spaces

  • Replacement cell for Teledyne 3000/300 series analyzers

[citation:web1][citation:web2][citation:web4]
