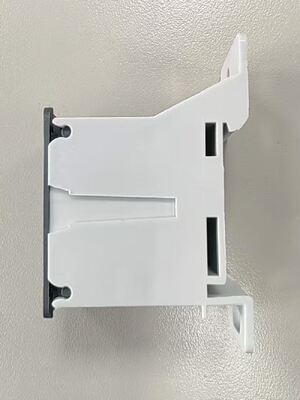

TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block

Large Image : TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block Get Best Price

Product Details:

Place of Origin:	IN
Brand Name:	TE Connectivity
Certification:	ATEX
Model Number:	DBL80
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

80A DIN rail power block

TE Connectivity DBL80 distribution block

1SNL308010R0000 power distribution block

TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block

TE Connectivity DBL80 (P/N 1SNL308010R0000) single-pole power distribution block. 80A, 1-in/6-out, 1000V AC / 1500V DC rating, for industrial control panels and solar PV combiner boxes.

Product Overview

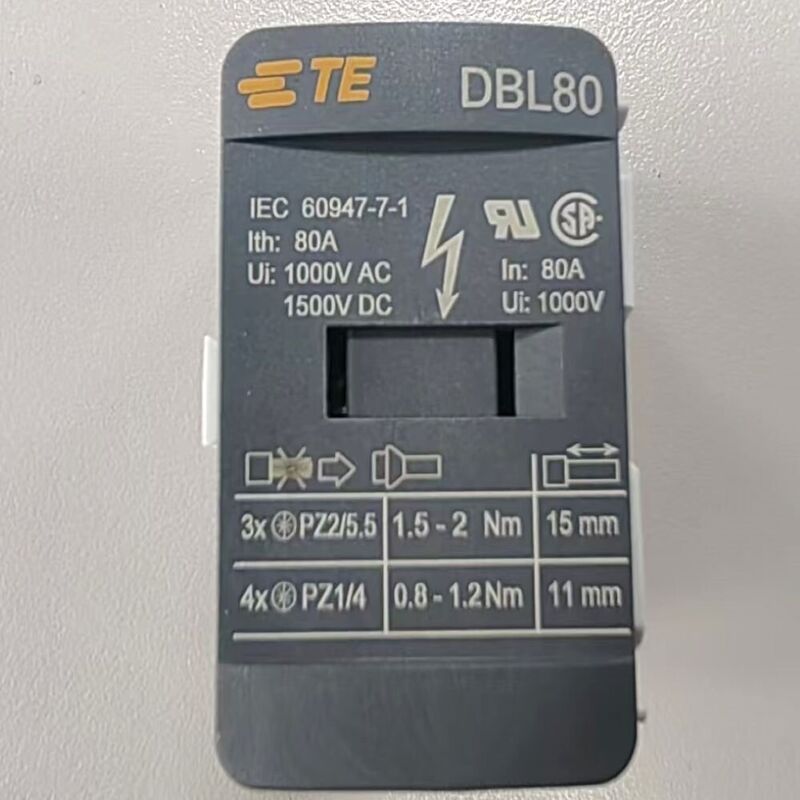

The TE Connectivity DBL80 (Part Number 1SNL308010R0000, formerly Entrelec) is a single-pole, 80A DIN rail power distribution block. It functions as a feed-through/splitter block designed to distribute a single high-current input to multiple output circuits (up to 6 loads) within industrial control panels, power supplies, and solar combiner boxes. It features screw clamp terminations and a compact design for efficient panel wiring.

Technical Specifications (Electrical & Ratings)

Parameter	Specification
Manufacturer / Brand	TE Connectivity / Entrelec
Part Number / Model	DBL80 (1SNL308010R0000)
Product Type	Power Distribution Block (Feed-Through)
Rated Current (IEC/UL)	80 A
Rated Voltage	1000 V AC / 1500 V DC
Short-Circuit Current Rating	100 kA
Peak Withstand Current	27 kA
Power Loss	2.56 W (at rated current)
Dielectric Strength	2200 V

Technical Specifications (Mechanical & Wiring)

Parameter	Specification
Number of Circuits	1 Input, 6 Outputs (7 positions total)
Termination Type	Screw Clamp
Wire Range (Main)	2.5 – 16 mm² (14 – 4 AWG)
Wire Range (Output)	2.5 – 6 mm² (14 – 10 AWG)
Housing Material	Polyamide (Grey), UL 94V-0
Mounting	DIN Rail (TH35-15 / TH35-7.5)
Dimensions (H×W×D)	66 × 28.4 × 50.2 mm
IP Rating	IP20
Operating Temperature	-55 °C to +110 °C

Key Features

Space-Saving Design: Compact footprint for high-density panel layouts.
High DC Voltage Rating: Supports up to 1500V DC, making it suitable for photovoltaic (PV) applications.
Multi-Tap Capability: Distributes one input to six output circuits, reducing wiring complexity.
High Short-Circuit Withstand: Robust construction for industrial environments.

Applications

Industrial control panel main power distribution
PLC and power supply feeder blocks
Solar PV combiner boxes and DC distribution
Machine tool electrical cabinets

[citation:web1][citation:web3][citation:web6]
