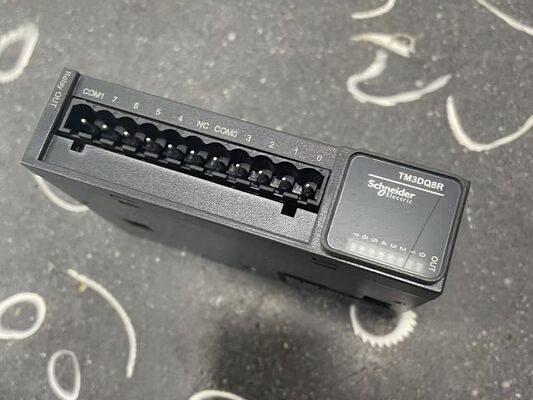

Schneider Electric TM3DQ8R | Modicon TM3 8-Channel Relay Output Module

Large Image : Schneider Electric TM3DQ8R | Modicon TM3 8-Channel Relay Output Module Get Best Price

Product Details:

Place of Origin:	TW
Brand Name:	Schneider Electric
Certification:	ATEX
Model Number:	TM3DQ8R
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Schneider Electric TM3DQ8R relay module

Modicon TM3 8-channel output module

industrial relay module with warranty

Schneider Electric TM3DQ8R | Modicon TM3 8-Channel Relay Output Module

Schneider Electric TM3DQ8R Modicon TM3 expansion module. 8 relay outputs (2A), 24VDC/240VAC, compatible with M221/M241/M251 PLCs. Screw terminal, DIN rail mount.

Product Overview

The Schneider Electric TM3DQ8R is a digital output expansion module for the Modicon TM3 programmable logic controller (PLC) system. It adds 8 relay outputs to compatible controllers (Modicon M221, M241, M251, M262) for switching AC/DC loads. It features removable screw terminals, per-channel status LEDs, and a compact DIN rail form factor for industrial automation panels.

Technical Specifications (Electrical & I/O)

Parameter	Specification
Manufacturer / Series	Schneider Electric / Modicon TM3
Model / Part Number	TM3DQ8R
Product Type	Digital Output Expansion Module
Number of Outputs	8 channels
Output Type	Relay (Electromechanical)
Contact Form	Normally Open (NO)
Rated Load Voltage	24 VDC / 240 VAC
Max. Switching Current	2 A per channel
Max. Switching Frequency	20 operations/min (at max load)
Response Time	≤ 10 ms (ON/OFF)
Contact Resistance	≤ 30 mΩ
Isolation	500 VAC (field to logic)

Technical Specifications (Mechanical & System)

Parameter	Specification
Compatible PLCs	Modicon M221, M241, M251, M262
Connection Type	Removable Screw Terminal Block
Wire Range	0.5 – 2.5 mm² (AWG 20-14)
Mounting	DIN Rail (TH35-15 / TH35-7.5)
Dimensions (H×W×D)	90 × 27.4 × 84.6 mm
Status Indication	Green LED per channel
Operating Temperature	-10 °C to +55 °C
Weight	Approx. 110 g

Key Features

Flexible Load Switching: Relay outputs allow mixing of AC (240V) and DC (24V) loads on the same module.
Tool-Free Assembly: Snap-on design for easy expansion on the TM3 bus without tools.
High Density: 8 isolated outputs in a compact 27mm width for space-constrained panels.
Visual Diagnostics: Individual LEDs for quick troubleshooting of output status.

Applications

Machine control relay replacement
Solenoid valve and contactor control
Industrial lighting and indicator control
General-purpose AC/DC load switching

[citation:web1][citation:web2][citation:web4]

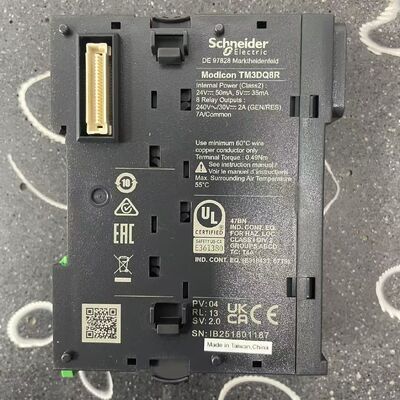

Schneider Electric TM3DQ8R | Modicon TM3 8-Channel Relay Output Module 0
