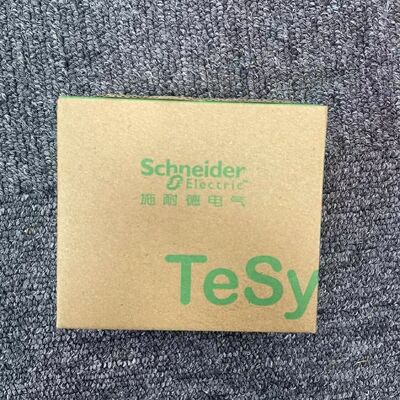

Schneider Electric LRD21 | TeSys LRD Thermal Overload Relay 12-18A Class 10A

Large Image : Schneider Electric LRD21 | TeSys LRD Thermal Overload Relay 12-18A Class 10A Get Best Price

Product Details:

Place of Origin:	FR
Brand Name:	Schneider Electric
Certification:	ATEX
Model Number:	LRD21
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Schneider Electric TeSys LRD overload relay

thermal overload relay 12-18A

class 10A thermal relay

Schneider Electric LRD21 | TeSys LRD Thermal Overload Relay 12-18A Class 10A

Schneider Electric LRD21 (TeSys LRD) thermal overload relay. 12-18A adjustable range, Class 10A trip, 690V AC, 1NO+1NC contacts. For motor protection with LC1D contactors.

Product Overview

The Schneider Electric LRD21 is a thermal overload relay from the TeSys LRD series (also known as TeSys Deca). It provides motor protection (overload, phase unbalance) for 3-phase AC motors in the 12–18 A full load current range. Designed for direct mounting under TeSys D contactors (e.g., LC1D18 to LC1D38), it features ambient temperature compensation, manual reset, and a compact form factor for industrial control panels.

Technical Specifications (Electrical & Protection)

Parameter	Specification
Manufacturer / Series	Schneider Electric / TeSys LRD (Deca)
Model / Part Number	LRD21
Product Type	Thermal Overload Relay (Differential, Bi-metallic)
Rated Operational Voltage (Ue)	690 V AC (50/60 Hz, 0–400 Hz range)
Current Setting Range (Ir)	12 – 18 A (Adjustable via dial)
Trip Class	Class 10A (per IEC 60947-4-1)
Phase Failure Sensitivity	Trips at ~130% Ir on two phases
Auxiliary Contacts	1 NO + 1 NC (Signaling Circuit)
Control Circuit Rating	1.5 A at 240V AC-15; 0.1 A at 250V DC-13

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Compatible Contactors	LC1D18, LC1D25, LC1D32, LC1D38 (TeSys D)
Mounting	Direct under contactor, DIN rail, or plate
Connection Type	Screw Clamp Terminals
Terminal Wire Range	Power: 1.5–10 mm²; Control: 1–2.5 mm²
Dimensions (W×H×D)	45 × 66 × 70 mm
IP Rating	IP20
Operating Temperature	-20 °C to +60 °C (with compensation)
Reset Type	Manual (Blue push-button), Red stop button

Key Features

Class 10A Tripping: Fast response (≈10 seconds) at 7.2× Ir for motor stall protection.
Ambient Compensation: Maintains trip accuracy across -20°C to +60°C environments.
Visual Trip Indication: Clear flag/button indication for quick fault diagnosis.
Screw Clamp Reliability: Robust terminals for power and control wiring.

Applications

Protection of 3-phase AC motors (pumps, fans, conveyors)
Industrial machine control panels
Motor starter combinations with TeSys D contactors
