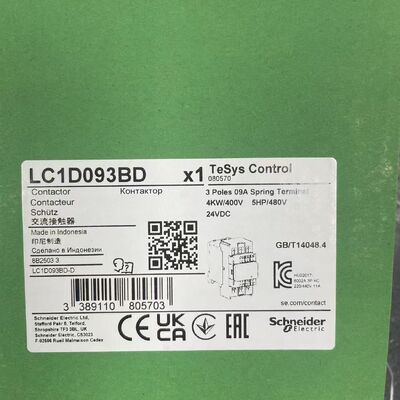

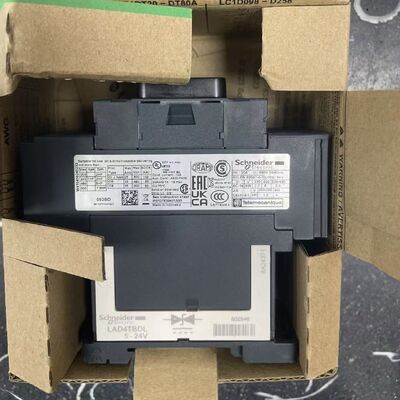

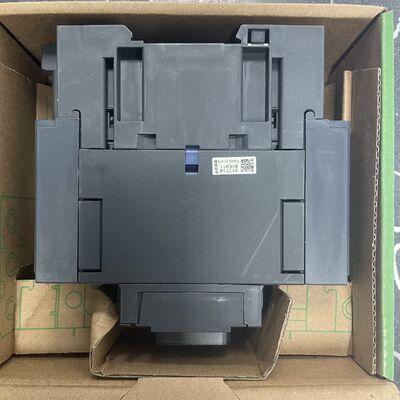

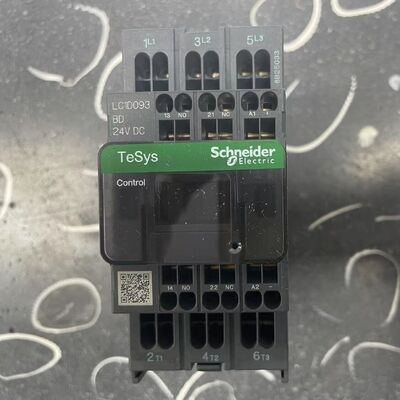

Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil

Large Image : Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil Get Best Price

Product Details:

Place of Origin:	ID
Brand Name:	Schneider Electric
Certification:	ATEX
Model Number:	LC1D093BD
Document:	ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	carton
Delivery Time:	Negotiable
Payment Terms:	T/T,XT,ALIPAY
Supply Ability:	100pcs per month

Contact Now

Detailed Product Description

Power Supply:

Ambient Temperature:

Electrical Rating:

Certifications:

Highlight:

Schneider Electric TeSys D contactor

3P contactor 9A 24V DC

TeSys D contactor with warranty

Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil

Schneider Electric LC1D093BD TeSys D contactor. 3-pole, 9A AC-3 rating, 24V DC coil, 4kW motor control. Built-in 1NO+1NC auxiliary contacts, spring-cage terminals, DIN rail mount.

Product Overview

The Schneider Electric LC1D093BD is a 3-pole (3 NO) electromagnetic contactor from the TeSys D series (LC1D). It is rated for 9 A at 400 V (AC-3), suitable for controlling 4 kW three-phase motors. This model features a 24 V DC control coil with built-in suppression, integrated 1NO+1NC auxiliary contacts, and spring-cage (push-in) terminals for quick wiring. It is designed for motor starting, HVAC, and industrial control applications.

Technical Specifications (Electrical & Ratings)

Parameter	Specification
Manufacturer / Series	Schneider Electric / TeSys D (LC1D)
Model Number	LC1D093BD
Product Type	3-Pole Contactor with Auxiliary Contacts
Rated Operational Current (Ie)	9 A (AC-3, 400 V)
Rated Insulation Voltage (Ui)	690 V AC
Control Coil Voltage	24 V DC (with built-in diode suppression)
Motor Power (AC-3)	4 kW (400 V) / 2.2 kW (230 V)
Utilization Category	AC-1, AC-3 (Motor), AC-4
Auxiliary Contacts	1 NO + 1 NC (Integrated, non-removable)

Technical Specifications (Mechanical & Environmental)

Parameter	Specification
Poles / Contact Configuration	3 NO (Main Contacts)
Terminal Type	Spring-Cage (Push-In) for power & control
Mounting	DIN Rail (35 mm) or Panel Plate
Dimensions (W×H×D)	45 × 80 × 95 mm (approx.)
IP Rating	IP20 (Front)
Operating Temperature	-25 °C to +60 °C (derating above 55°C)
Mechanical Life	30 Million cycles
Electrical Life (AC-3)	1.5–3 Million cycles
Standards	IEC 60947-4-1, UL 508, CSA, CCC

Key Features

Integrated Auxiliaries: Built-in 1NO+1NC signaling contacts eliminate the need for separate add-on blocks.
DC Coil with Suppression: 24 V DC coil includes a bidirectional diode for voltage spike protection in PLC/electronic control circuits.
Quick-Connect Terminals: Spring-cage (push-in) terminals reduce wiring time compared to screw clamps.
High Breaking Capacity: Rated for 690 V AC systems and motor inrush currents.

Applications

Control of small 3-phase motors (pumps, fans, compressors)
HVAC and building automation control panels
Machine tool and conveyor starter circuits

Schneider Electric LC1D093BD | TeSys D 3P Contactor 9A 24V DC Coil 0
