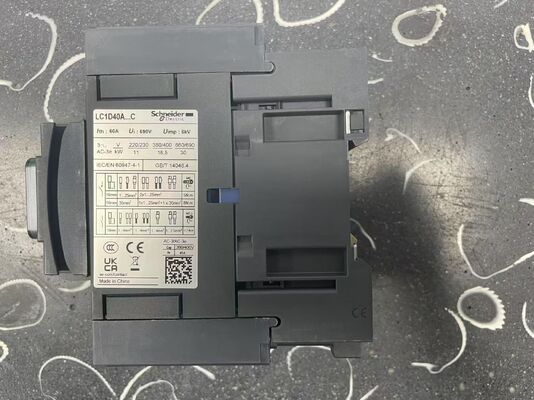

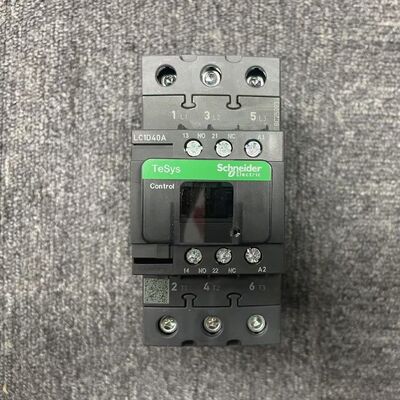

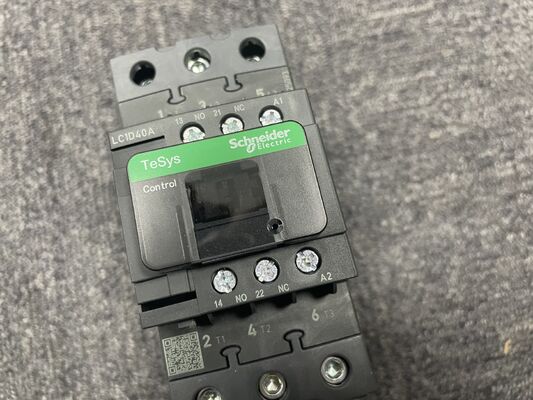

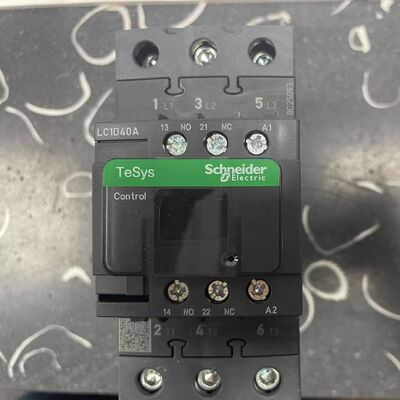

Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model

Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model
Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model

Large Image :  Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model Get Best Price

Product Details:
Place of Origin: FR
Brand Name: Schneider Electric
Certification: ATEX
Model Number: LC1D40A
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Schneider Electric 40A contactor

,

TeSys D 3P base model

,

LC1D40A industrial contactor

Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model

Base model Schneider Electric LC1D40A TeSys D contactor. 3-pole, 40A AC-3 rating, 18.5kW motor control. Requires coil voltage suffix (e.g., AB7, F7) for full specification.

Product Overview

The Schneider Electric LC1D40A​ is the base reference​ for a 40 A frame size​ 3-pole contactor in the TeSys D series​ (also known as TeSys Deca). This model number denotes the core 40A power component without a predefined coil voltage; it must be ordered with a suffix (e.g., LC1D40AB7 for 24V AC, LC1D40AF7 for 110V AC) to specify the control circuit. It is designed for switching 3-phase motors up to 18.5 kW (400V)​ and features a modular design that accepts add-on auxiliary contact blocks.

Technical Specifications (Electrical & Ratings)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / TeSys D (LC1D)

Base Model Number​

LC1D40A​ (Requires suffix e.g., AB7, F7, etc.)

Product Type​

3-Pole Electromagnetic Contactor (Base Unit)

Rated Operational Current (Ie)​

40 A​ (AC-3, 400 V) / 60 A (AC-1)

Rated Insulation Voltage (Ui)​

690 V AC​

Control Coil Voltage​

Not Predefined​ (Specified by suffix, e.g., 24V AC, 110V AC, 24V DC)

Motor Power (AC-3)​

18.5 kW​ at 400 V / 11 kW at 230 V

Utilization Category​

AC-1, AC-3 (Motor), AC-4

Auxiliary Contacts (Base)​

None​ (Requires add-on blocks e.g., LA**​ series)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Poles / Contact Configuration​

3 NO (Main Contacts)

Terminal Type​

Screw Clamp (Power & Control)

Mounting​

DIN Rail (35 mm) or Panel Plate

Dimensions (W×H×D)​

Approx. 55 × 122 × 118 mm​

IP Rating​

IP20 (Front)

Operating Temperature​

-25 °C to +60 °C (with derating)

Mechanical Life​

6 – 10 Million cycles

Electrical Life (AC-3)​

~1.5 Million cycles

Standards​

IEC 60947-4-1, UL 508, CSA, CCC

Key Features

  • Modular Design:​ The base unit (LC1D40A) is a "naked" contactor; auxiliary contacts (NO/NC) and timers must be added as separate blocks.

  • High Compatibility:​ Designed to pair with TeSys D overload relays (e.g., LRD21, LRD35) for complete motor starter assemblies.

  • Flexible Control:​ Coil voltage is not fixed, allowing selection of 24V, 48V, 110V, 220V AC/DC variants based on the application's control circuit.

  • High Breaking Capacity:​ Rated for 690V AC systems and motor inrush currents (AC-3 duty).

Applications

  • Motor starter combinations for 15–20 kW pumps and fans

  • Industrial control panels and MCC (Motor Control Center) buckets

  • HVAC and compressor control circuits

Schneider Electric LC1D40A | TeSys D 40A 3P Contactor Base Model 0
