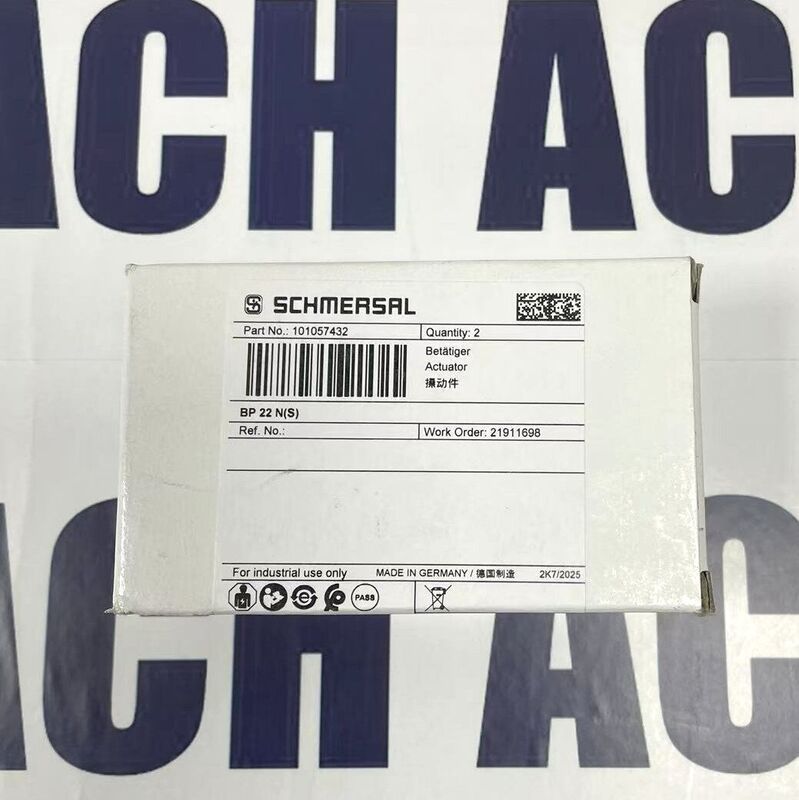

Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches

Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches
Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches

Large Image :  Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Schmersal
Certification: ATEX
Model Number: BP22N
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Schmersal BP22N magnetic actuator

,

BP 22 N(S) safety switch

,

VEGA Instruments magnetic safety actuator

Schmersal BP22N | BP 22 N(S) Magnetic Actuator for Safety Switches

Schmersal BP22N magnetic actuator. Metal housing, 160mm length, for AZ/AZM series safety door switches. N/S pole marking, mounts on ferrous material.

Product Overview

The Schmersal BP22N​ (also listed as BP 22 N(S)) is a magnetic safety actuator​ used to trigger non-contact magnetic safety interlock switches on machine guards and doors. It features a metal housing​ and is designed for mounting on ferrous materials. This actuator is a passive component that works in conjunction with Schmersal's magnetic safety switch heads (e.g., AZ, AZM series) to provide a tamper-resistant safety solution for industrial machinery.

Technical Specifications (General & Mechanical)

Parameter

Specification

Brand / Series​

Schmersal / BP Series

Model Number​

BP22N (BP 22 N(S))

Article Number​

101057432

Product Type​

Magnetic Safety Actuator

Housing Material​

Metal

Mounting​

Suitable for ferrous material

Pole Marking​

N-pole (Green), S-pole (Red)

Dimensions (L×W×H)​

25 × 35 × 160 mm

Weight​

Approx. 260-272 g

Technical Specifications (Application & Environmental)

Parameter

Specification

Compatible Switches​

Schmersal AZ, AZM series magnetic safety switches

Actuation Principle​

Magnetic (Reed Contact Activation)

Safety Standard​

IEC 60947-5-3 (as part of a safety switch assembly)

IP Rating​

Dependent on switch head assembly

Operating Temperature​

Standard industrial range (typically -20°C to +60°C)

Key Features

  • Dual-Pole Capability:​ Can be used as either an N or S pole magnet, providing flexibility in installation and replacement.

  • Robust Construction:​ Metal housing ensures durability and resistance to impact in harsh industrial environments.

  • Safety System Component:​ Designed specifically for use with Schmersal safety door interlocks to help achieve safety performance levels (PL) per ISO 13849.

Applications

  • Machine safety door interlocks

  • Guard locking systems on presses and robots

  • Access control on automated production equipment
