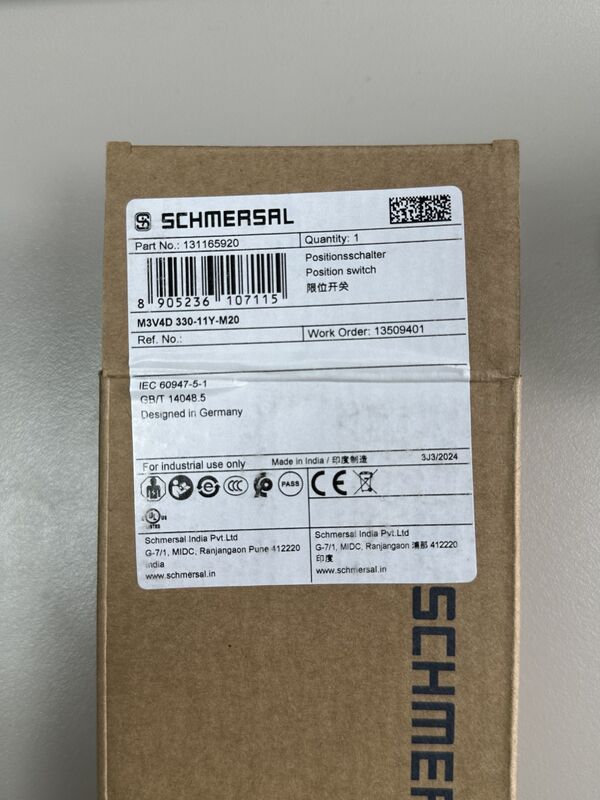

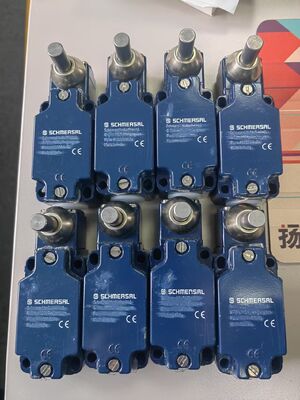

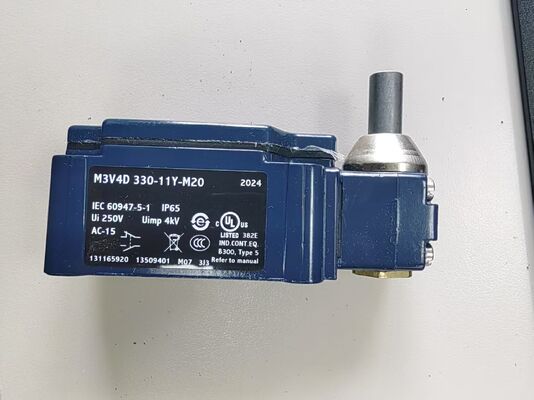

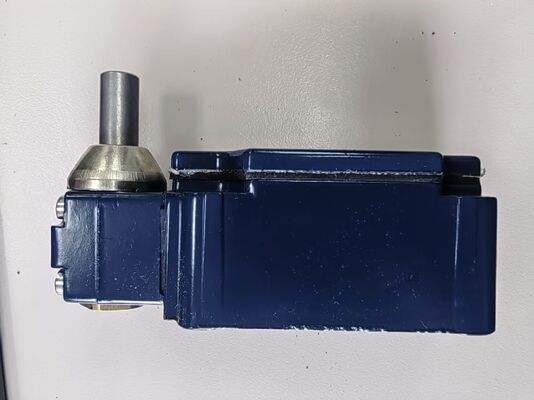

Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever

Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever
Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever

Large Image :  Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Schmersal
Certification: ATEX
Model Number: M3V4D 330-11Y-M20
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Schmersal M330 limit switch

,

fork roller lever limit switch

,

M3V4D 330-11Y-M20 industrial switch

Schmersal M3V4D 330-11Y-M20 | M330 Limit Switch Fork Roller Lever

Schmersal M3V4D 330-11Y-M20 mechanical limit switch. 1NO+1NC contacts, 6A 250V rating, IP65 metal housing. Forked roller lever actuator, M20x1.5 cable gland.

Product Overview

The Schmersal M3V4D 330-11Y-M20​ is a heavy-duty mechanical limit switch​ from the M330 series. It features a die-cast metal housing​ rated IP65​ for harsh environments and is equipped with a forked roller lever (4D)​ actuator for reliable operation in high-speed and high-repeatability applications. This switch contains 1 NO + 1 NC snap-action contacts​ rated for 6 A at 250 V AC, making it suitable for position detection, travel limitation, and control circuit switching in industrial machinery.

Technical Specifications (Electrical & General)

Parameter

Specification

Brand / Series​

Schmersal / M330 Series

Model Number​

M3V4D 330-11Y-M20

Article Number​

131165920

Product Type​

Mechanical Limit Switch

Contact Configuration​

1 NO + 1 NC​ (Snap Action)

Rated Operating Current​

6 A​ (Thermal Current)

Rated Voltage​

250 V AC, 50/60 Hz

Utilization Category​

AC-15 (230V / 2.5A)

Contact Material​

Silver

Bounce Time​

≤ 1.5 ms

Standard​

EN/IEC 60947-5-1

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Actuator Type​

Forked Roller Lever (4D)​

Housing Material​

Die-Cast Light Alloy (Painted)

Degree of Protection​

IP65​

Operating Temperature​

-30 °C to +90 °C​

Mechanical Life​

> 30 Million Operations

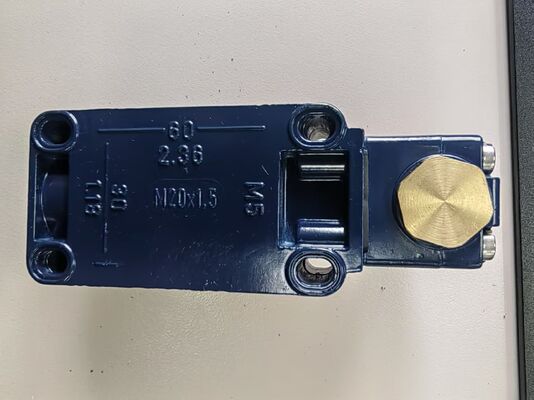

Cable Entry​

1x M20 x 1.5​ (Cable Gland)

Actuator Adjustment​

360° Continuous, 180° Tiltable

Shock Resistance​

50 g / 6 ms

Weight​

Approx. 341 g

Key Features

  • Robust Actuator:​ The forked roller lever design provides high repeatability (±0.02 mm) and is ideal for bidirectional cam operation, reducing the risk of lever breakage.

  • Versatile Mounting:​ The actuator head can be repositioned in 90° increments, and the lever can be adjusted 360° continuously, allowing for flexible installation alignment.

  • Industrial Durability:​ Metal housing and high mechanical life make it suitable for heavy machinery, conveyors, and automated production lines.

Applications

  • Machine tool travel limits and positioning

  • Material handling and conveyor control systems

  • Packaging machinery and automated assembly lines
