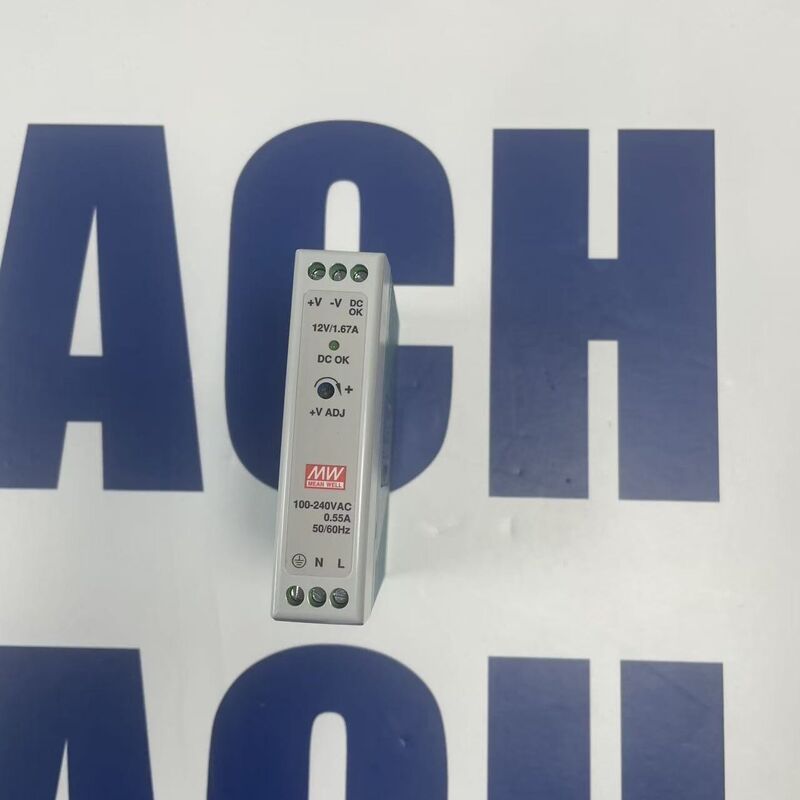

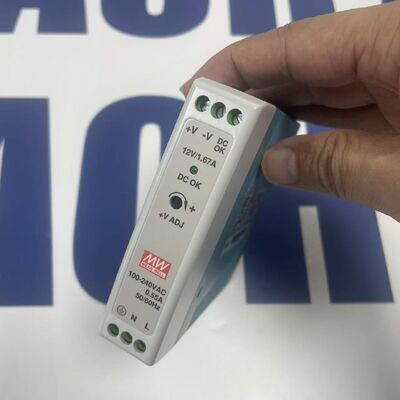

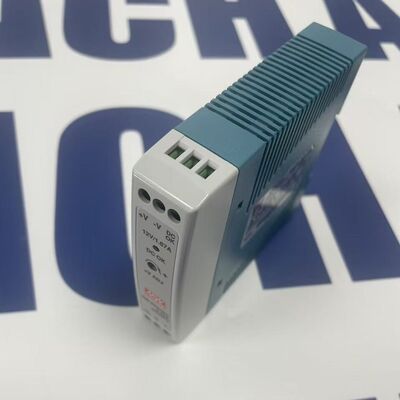

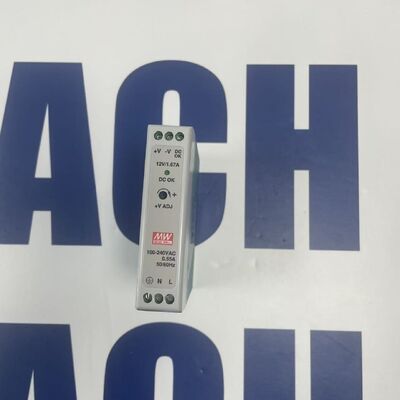

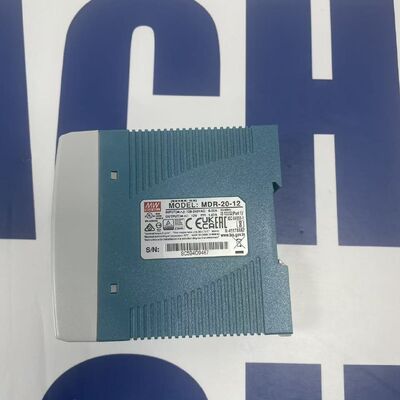

Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply

Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply
Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply

Large Image :  Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply Get Best Price

Product Details:
Place of Origin: CN
Brand Name: Mean Well
Certification: ATEX
Model Number: MDR-20-12
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Mean Well 12V DIN rail power supply

,

20W switching power supply with warranty

,

MDR-20-12 DIN rail mount PSU

Mean Well MDR-20-12 | 12V 20W DIN Rail Switching Power Supply

Mean Well MDR-20-12 DIN rail power supply. 12V DC output, 1.67A rated current, 85-264V AC universal input. UL 508, EN 62368-1 certified.

Product Overview

The Mean Well MDR-20-12​ is a compact 20W DIN rail mounted switching power supply​ designed for industrial control panel applications. It provides a regulated 12V DC output​ at up to 1.67A​ from a universal 85-264V AC​ input range. This unit features a plastic housing, built-in DC OK signal, and complies with key industrial safety standards including UL 508 and EN 62368-1.

Technical Specifications (Electrical)

Parameter

Specification

Output Voltage​

12 V DC​

Rated Output Current​

1.67 A​

Rated Power​

20 W​

Voltage Adjustment Range​

10.8 ~ 13.2 V DC

Input Voltage Range​

85 ~ 264 V AC​ (47-63 Hz) / 120 ~ 370 V DC

Efficiency​

typ. 81% (230V AC)

Ripple & Noise​

120 mVp-p max

DC OK Signal​

Yes (Active signal contact)

Technical Specifications (Mechanical & Protection)

Parameter

Specification

Mounting​

DIN Rail TS-35/7.5 or 15

Dimensions (W x H x D)​

22.5 x 90 x 100 mm​

Weight​

Approx. 0.17 kg

Operating Temperature​

-20 ~ +70 °C​ (with derating)

Cooling​

Natural convection

Protections​

Overload (105-160%), Short circuit, Overvoltage (13.8-16.2V)

Safety Standards​

UL 508, EN/UL/CSA 62368-1, EAC TP TC 004

Isolation​

I/P-O/P: 3 kV AC

Key Features

  • Universal Input:​ Wide input range (85-264V AC) ensures stable operation under fluctuating grid voltages.

  • DC OK Indicator:​ Built-in relay contact (DC OK) provides a signal for remote monitoring of power status.

  • Auto-Recovery:​ Overload and short-circuit protection with automatic recovery after fault clearance.

  • Space Saving:​ Slim 22.5mm width allows high-density mounting on standard DIN rails.

Applications

  • PLC and relay control circuits

  • Industrial automation sensors and actuators

  • Small machine control cabinets
