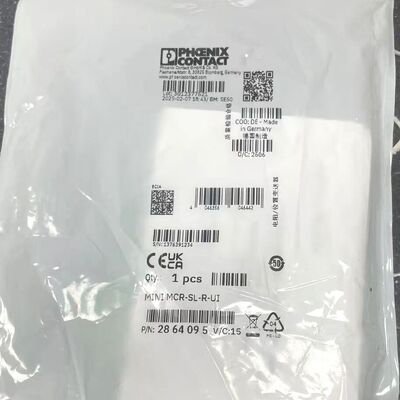

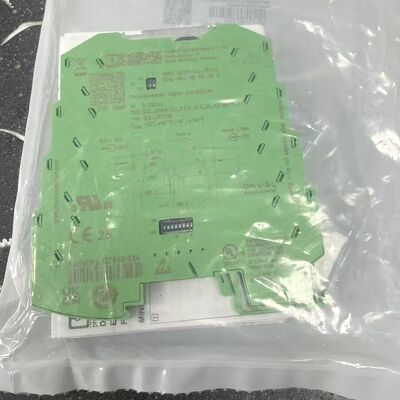

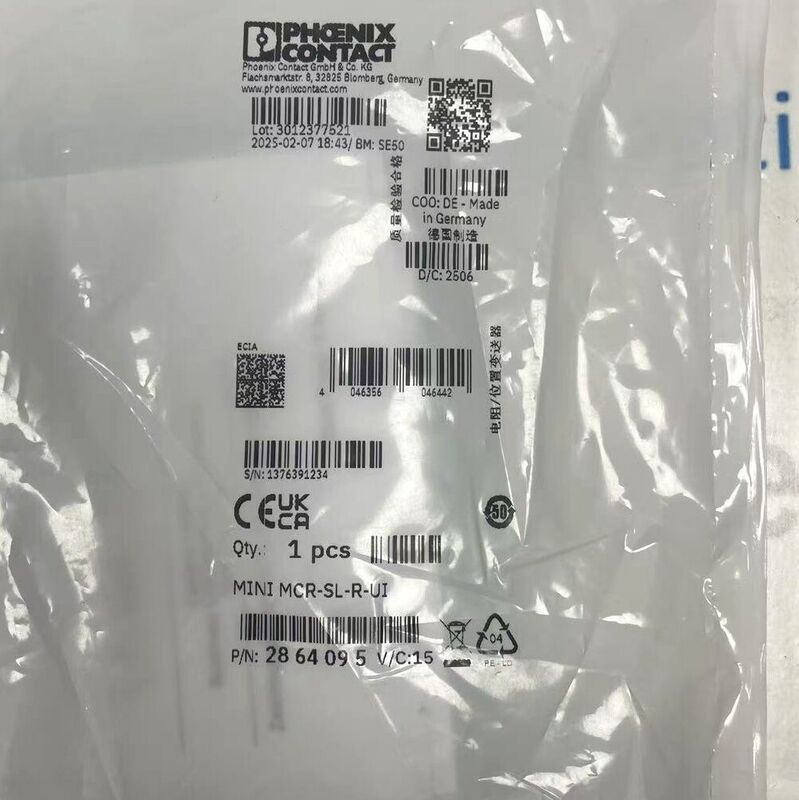

Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter

Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter
Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter

Large Image :  Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Phoenix Contact
Certification: ATEX
Model Number: MINI MCR-SL-R-UI
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

Phoenix Contact MINI MCR-SL-R-UI converter

,

potentiometer to 4-20mA converter

,

analog signal converter with warranty

Phoenix Contact MINI MCR-SL-R-UI | Potentiometer to Analog 4-20mA Converter

Phoenix Contact MINI MCR-SL-R-UI signal conditioner. Converts 100Ω-100kΩ potentiometer input to 4-20mA or 0-10V. 24V DC power, 6.2mm slim DIN rail module.

Product Overview

The Phoenix Contact MINI MCR-SL-R-UI​ (Order No. 2864095) is an ultra-slim resistance and potentiometer transmitter​ for industrial signal conditioning. It converts a variable resistance input (100 Ω to 100 kΩ) into a standardized analog output signal (4-20 mA, 0-10 V, etc.). With a width of just 6.2 mm, it provides electrical isolation between the sensor input and the control system output, protecting against interference and ground loops. Configuration is simplified via DIP switches on the side of the module.

Technical Specifications (Electrical & I/O)

Parameter

Specification

Order Number​

2864095​

Function​

Resistance / Potentiometer to Analog Converter

Input Resistance​

100 Ω ... 100 kΩ​

Sensor Excitation​

< 3.6 V DC (Reference Voltage)

Output Signals​

4...20 mA, 0...20 mA, 20...4 mA, 20...0 mA
0...10 V, 1...5 V, 0...5 V, 10...0 V

Max. Output Current​

23 mA

Max. Output Voltage​

12.5 V

Load (Current Output)​

≤ 500 Ω (at 20 mA)

Load (Voltage Output)​

≥ 10 kΩ

Transmission Error​

< 0.2 %​

Step Response (10-90%)​

< 30 ms

Technical Specifications (System & Mechanical)

Parameter

Specification

Power Supply​

24 V DC​ (19.2 ... 30 V DC)

Power Consumption​

< 500 mW (Typ. < 25 mA @ 24V)

Isolation​

Input / Output / Supply (1.5 kV AC)

Configuration​

DIP Switches (Output Range, Diagnostics)

Housing Dimensions (WxHxD)​

6.2 mm x 93.1 mm x 102.5 mm​

Mounting​

DIN Rail (35 mm)

Connection​

Screw Clamp (M3) or Spring Cage (0.2-2.5 mm²)

Operating Temperature​

-20 °C ... +65 °C​

IP Rating​

IP20

Standards​

CE, ATEX (Zone 2), EN 61010

Key Features

  • Wide Input Range:​ Accepts potentiometer resistances from 100 Ω up to 100 kΩ, making it compatible with a broad range of position sensors.

  • Flexible Outputs:​ User-selectable voltage or current output ranges, including standard 4-20 mA and 0-10 V signals.

  • High Density:​ The 6.2 mm width allows for extremely high-density installations in control panels.

  • TBUS Compatibility:​ Supports power bridging via Phoenix Contact's TBUS system for daisy-chaining 24V DC supply.

Applications

  • Converting valve position feedback (potentiometer) to 4-20 mA for PLC input

  • Level sensor signal conditioning in tanks and silos

  • Interface for joystick and manual control station potentiometers
