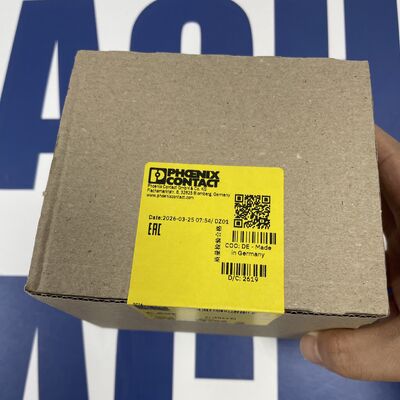

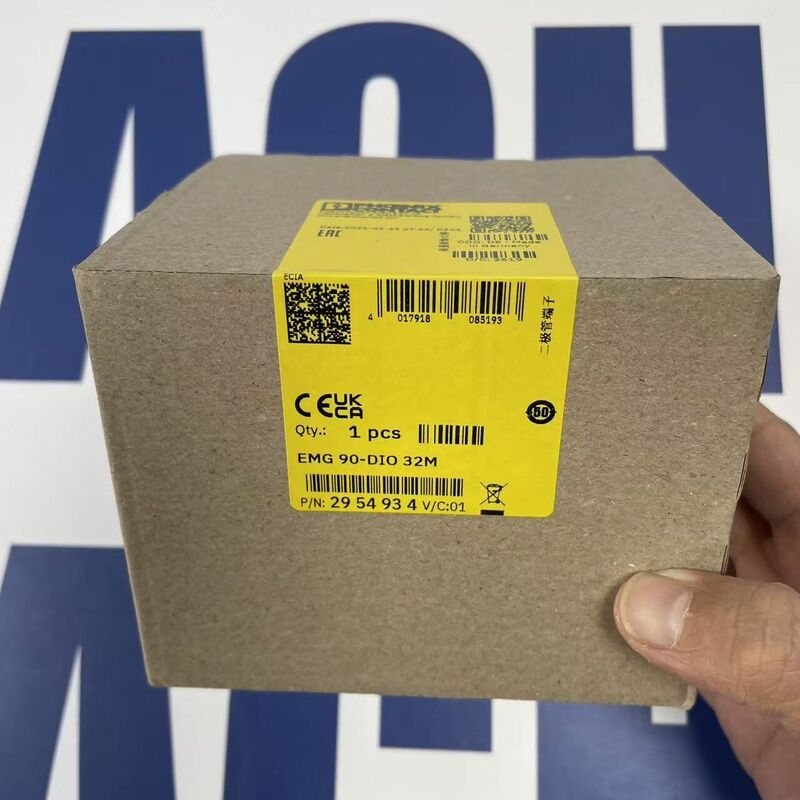

Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007

Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007
Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007 Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007

Large Image :  Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007 Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Phoenix Contact
Certification: ATEX
Model Number: PHOENIX CONTACT EMG 90-DIO 32M
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

32-channel diode module 1N4007

,

Phoenix Contact EMG 90-DIO

,

industrial diode module with warranty

Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007

Phoenix Contact EMG 90-DIO 32M diode module. 32 channels, common anode, 1N4007 diodes, 250V AC, 0.7A per diode, DIN rail mount for signal decoupling.

Product Overview

The Phoenix Contact EMG 90-DIO 32M​ is a 32-channel diode terminal block​ designed for signal decoupling and freewheeling​ in digital I/O circuits. It integrates 32 1N4007 diodes​ in a common anode configuration, providing a compact solution for protecting PLC outputs or creating OR-logic in safety and control systems. This module features a 90mm width, screw connection, and is designed for DIN rail mounting​ in control cabinets.

Technical Specifications (Electrical)

Parameter

Specification

Article Number​

2954934​

Product Type​

Diode Module

Number of Diodes​

32​

Diode Type​

1N4007​

Configuration​

Common Anode​

Max. Operating Voltage​

250 V AC​

Peak Reverse Voltage​

1300 V​

Forward Current (Single)​

0.7 A​

Forward Current (Simultaneous)​

0.2 A​

Forward Voltage​

~0.8 V​

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Connection Type​

Screw Clamp (M3)​

Mounting​

DIN Rail (NS35/7.5/15)​

Housing Material​

Plastic (Green RAL 6021)

Dimensions (WxHxD)​

90 x 75 x 55 mm​

Operating Temperature​

-20 °C ... +50 °C​

Storage Temperature​

-40 °C ... +70 °C

Protection Rating​

IP20 (DIN Rail Mount)

Standards​

DIN EN 50178, EN 61326

Key Features

  • High-Density Decoupling:​ 32 diodes​ in a single 90mm module​ save space and simplify wiring for multi-channel I/O protection.

  • Inductive Load Protection:​ Acts as a freewheeling diode​ to suppress voltage spikes from relays, contactors, and solenoids, protecting sensitive output cards.

  • Signal Isolation:​ The common anode​ configuration allows for electrical decoupling of signals in fault reporting or dual-channel control systems.

  • Tool-Free Mounting:​ Designed for DIN rail mounting​ with push-in marking slots​ and compatibility with EMG marking accessories.

Applications

  • PLC Output Protection:​ Protecting transistor outputs from back-EMF when driving inductive loads like relays and small solenoids.

  • Safety Circuit OR-Logic:​ Implementing OR-ing logic​ in safety relay circuits or dual-channel monitoring systems where signal isolation is required.

  • Signal Conditioning:​ Decoupling digital signals in control panels to prevent ground loops or cross-talk between different I/O modules.

Phoenix Contact EMG 90-DIO 32M | 32-Channel Diode Module 1N4007 0
