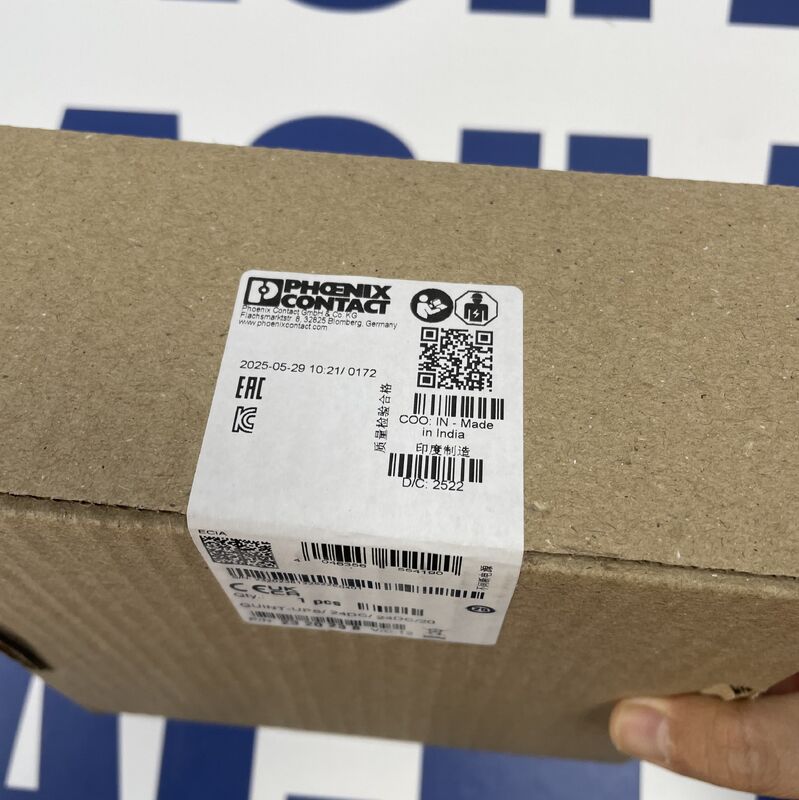

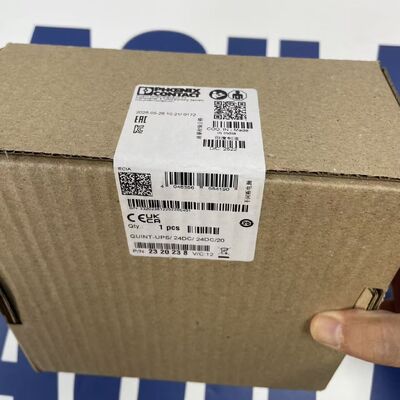

Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail

Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail
Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail

Large Image :  Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Phoenix Contact
Certification: ATEX
Model Number: PHOENIX CONTACT QUINT-UPS24DC24DC20-03
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

24V DC 20A DIN rail UPS

,

480W industrial UPS system

,

Phoenix Contact QUINT UPS

Phoenix Contact QUINT-UPS24DC24DC20-03 | 24V DC 20A UPS, 480W, DIN Rail

Phoenix Contact QUINT-UPS24DC24DC20-03 uninterruptible power supply. 24V DC input/output, 20A (480W), IQ Technology, 0ms switchover, supports 3-200Ah batteries, IP20.

Product Overview

The Phoenix Contact QUINT-UPS24DC24DC20-03​ (Order No. 2320238) is a DIN rail-mounted DC UPS module​ designed for 24V industrial control systems. It provides 480W output (20A)​ with zero millisecond switchover​ to battery backup during input power failure. Featuring IQ Technology​ for intelligent battery management, it supports external lead-acid or lithium batteries from 3Ah to 200Ah, ensuring continuous operation of PLCs, sensors, and safety circuits.

Technical Specifications (Electrical & Performance)

Parameter

Specification

Manufacturer Part No.​

QUINT-UPS24DC24DC20-03​ (2320238)

Input Voltage (DC)​

24 V DC​ (Range: 18 ... 30 V DC)

Output Voltage​

24 V DC​ (Mains: 18-30V, Battery: 19.2-27.6V)

Rated Output Current (IN)​

20 A​ (at -25°C to +50°C)

Peak Current (Boost)​

26 A​ (Static, -25°C to +40°C)

Output Power​

480 W​

Efficiency​

> 98 %​ (Mains & Battery Operation)

Switchover Time​

0 ms​ (No Break)

Battery Capacity Range​

3 Ah ... 200 Ah​ (External VRLA/Li-ion)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing / Mounting​

DIN Rail​ (NS35/7.5/15), IP20​

Connection Type​

Screw Clamp​ (Input, Output, Battery, Signals)

Operating Temperature​

-25 °C ... +70 °C​ (Derating above +60°C)

Storage Temperature​

-40 °C ... +85 °C

Dimensions (W x H x D)​

40 x 130 x 125 mm​

Weight​

Approx. 0.6 kg​

Signaling Relays​

Alarm, Battery Mode, Battery Charge (30V DC, 100mA)

Standards​

IEC 61010-1, UL 508 (Industrial Control Equipment)

Key Features

  • Zero Switchover Time:​ Maintains continuous power to loads during mains failure, critical for PLCs and safety systems without reboot.

  • IQ Technology:​ Automatic battery diagnostics, temperature-compensated charging, and configurable parameters for optimized battery life.

  • Wide Battery Compatibility:​ Supports a broad range of external 24V batteries (3-200Ah), allowing flexible backup time customization.

  • Robust Protection:​ Selective Fuse Breaking (SFB)​ technology handles high inrush currents, and reverse polarity protection safeguards the unit.

Applications

  • Industrial Automation:​ Backup power for PLCs, I/O systems, and control cabinets​ in manufacturing.

  • Process Control:​ Uninterrupted operation of sensors, transmitters, and safety relays​ in critical processes.

  • Infrastructure:​ Power backup for telecom, traffic control, and railway signaling​ systems.
