Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8

Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8
Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8 Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8 Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8

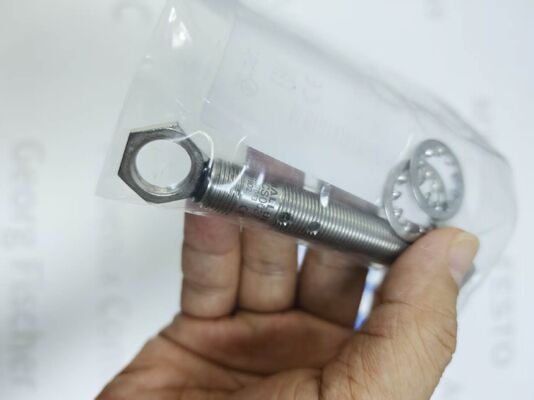

Large Image :  Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8 Get Best Price

Product Details:
Place of Origin: CN
Brand Name: BALLUFF
Certification: ATEX
Model Number: BCS M12T4D2-PSM40C-S04G
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

M12 capacitive sensor 4mm range

,

PNP NO capacitive proximity sensor

,

M12 M8 capacitive sensor

Balluff BCS M12T4D2-PSM40C-S04G | M12 Capacitive Sensor, 4mm Range, PNP NO, M8
Balluff BCS M12T4D2-PSM40C-S04G capacitive proximity sensor. 4mm flush range, PNP NO, M12x1 thread, M8 4-pin, 10-30V DC, IP67, detects solids & liquids through container walls.

Product Overview

The Balluff BCS M12T4D2-PSM40C-S04G​ (Order No. BCS001W) is a capacitive proximity sensor​ in an M12 cylindrical housing. It detects solids and liquids—even through non-metallic container walls (glass, plastic, ceramic)—making it ideal for level detection in tanks, hoppers, and packaging machines. This model features a 4 mm flush-mountable sensing range, PNP Normally Open (NO) output, and a 4-pin M8 connector.

Technical Specifications (Electrical & Performance)

Parameter
Specification
Order Number​
BCS M12T4D2-PSM40C-S04G​ (BCS001W)
Sensor Type​
Capacitive Proximity Sensor
Nominal Sensing Range (Sr)​
4 mm​ (Flush Mountable)
Max. Sensing Range​
~5 mm (non-flush objects/liquids)
Switching Output​
PNP, Normally Open (NO)​
Supply Voltage​
10 ... 30 V DC​
Current Consumption​
≤ 15 mA (no-load)
Max. Switching Current​
200 mA
Response Time​
≤ 1 ms
Hysteresis​
1 ... 15 % of Sr (typ. 5 %)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Housing Material​
Brass, Nickel-plated​ (Active face: PBT)
Thread / Size​
M12 x 1​ (Cylindrical)
Length​
~50 mm (typical for M12 cap. sensor)
Connection​
M8, 4-pin Plug Connector​
Protection Rating​
IP67​
Operating Temperature​
-25 °C ... +70 °C​
EMC / Standards​
EN 60947-5-2, CE, cULus
Teach / Adjustment​
Potentiometer (sensitivity trim for wall-penetration apps)

Key Features

  • Detects Through Walls:​ Can sense water, granules, or powders through glass/plastic vessel walls up to several mm thick (range depends on wall material and dielectric).
  • Flush Mountable:​ 4 mm range when installed flush in metal—no reduction factor loss from adjacent metal.
  • Sensitivity Trim:​ Integrated potentiometer lets you tune the switching point to ignore the container wall itself.
  • Rugged M12 Metal Housing:​ Nickel-plated brass body withstands mechanical stress better than plastic alternatives.

Applications

  • Non-Metallic Tank Level:​ Point-level detection of liquids (water, oil, chemicals) in plastic or glass tanks.
  • Hopper / Silo Monitoring:​ Detect presence of granulate, powder, or pellets through the bin wall.
  • Packaging QA:​ Verify product presence inside blister packs, bottles, or cartons on filling lines.
  • Machine Build:​ Web break / material presence detection for paper, film, or non-woven through a guide roller.
Note: For NPN output or cable version, see other BCS M12 variants (e.g., BCS M12T4D2-PSC40C-S04G for NPN). Sensitivity should be adjusted via the onboard pot when sensing through a container wall to avoid false triggering on the wall itself.
