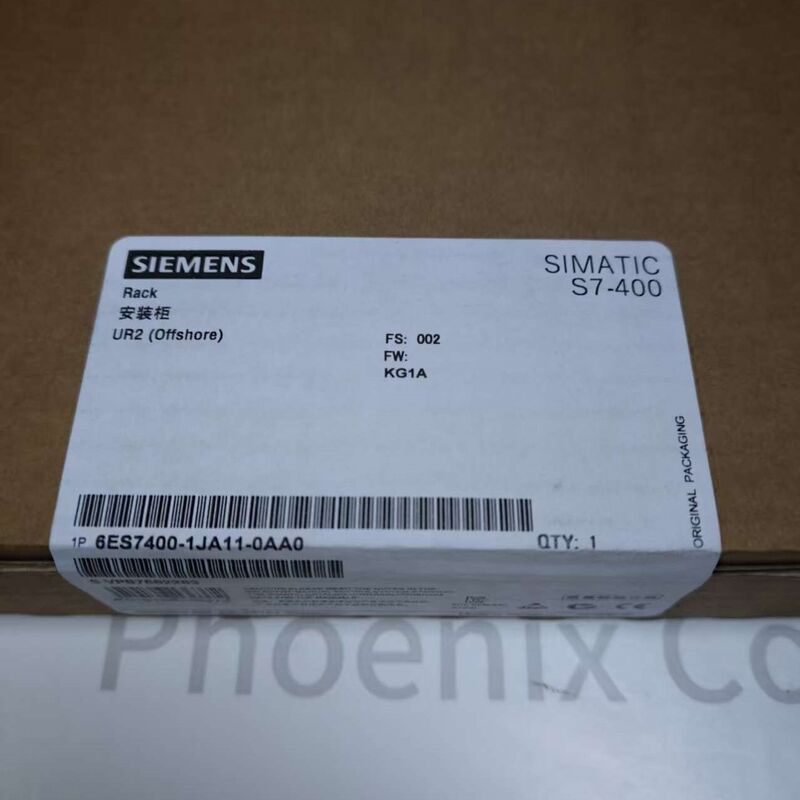

6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots

6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots
6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots 6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots

Large Image :  6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots Get Best Price

Product Details:
Place of Origin: DE
Certification: ATEX
Model Number: 6ES7400-1JA11-0AA0
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

6ES7400-1JA11-0AA0 | SIMATIC S7-400 UR2 Universal Rack, 18 Slots

6ES7400-1JA11-0AA0 SIMATIC S7-400 UR2 universal rack. 18 slots (9+9 split), accepts S7-400 CPUs, signal/power modules, IM modules. For central or distributed S7-400 configurations.

Product Overview

6ES7400-1JA11-0AA0​ is a SIMATIC S7-400 Universal Rack UR2 (18-slot)​ — the standard mechanical chassis for mounting S7-400 CPUs (e.g., CPU 414-2, 416-2), power supplies (PS 407), signal modules (SM 421/431, SM 422/432), interface modules (IM 460/470 for distributed I/O extension), and communications processors. The UR2 has 18 module slots divided into two 9-slot segments​ (left/right), which can host a CPU + I/O in a central rack or be split between a central and expansion configuration with appropriate interface modules. It is the go-to rack for medium-to-large S7-400 control cabinets.

Technical Specifications (Mechanical & Layout)

Parameter
Specification
Order Number​
6ES7400-1JA11-0AA0​
Product Family​
SIMATIC S7-400 — Rack / Chassis
Rack Type​
UR2 (Universal Rack — 18 Slots)​
Total Slot Count​
18 Slots​ (Split: Slot 1–9 Left Segment / Slot 10–18 Right Segment)
Slot Assignment (Typical Central Config)​
Slot 1: PS 407 (Power Supply)
Slot 2: CPU (or CR with IM)
Slots 3–9: SM / FM / CP (Left Segment)
Slots 10–18: SM / FM / CP (Right Segment — if no 2nd CPU)
Backplane Bus​
S7-400 Parallel Bus (I/O, K-Bus for FM/CP, DP via IM) — passive (no active components on rack itself)
Mounting​
35 mm Top-Hat DIN Rail (Adapter included)​ or Direct Screw Mount (M6 bolts — holes in rear panel)​
Dimensions (W × H × D)​
~482.6 mm (19" rack width) × 147 mm (3U) × ~147 mm (depth varies — ~147 mm typical for UR2)
Material / Finish​
Sheet Steel, RAL 7035 (Light Grey)
Grounding / Shielding​
Integrated ground strap to cabinet; rear-panel earth stud

Technical Specifications (Environmental & Compatibility)

Parameter
Specification
Operating Temperature​
0 … +60 °C​ (Same as hosted modules)
Storage / Transport Temp.​
-40 … +70 °C
Relative Humidity​
5 … 95 % (non-condensing)
Max. Power Dissipation (Modules)​
Determined by PS 407 power supply rating + ventilation — typically up to 120 W (consult PS datasheet)
Compatible S7-400 Components​
PS 407 (Power Supply), CPU 412/413/414/416/417, SM 421/422/431/432, FM 450/458, CP 443-1/443-5, IM 460/461/470/471
Weight (Empty Rack)​
~3.5 kg
Standard / Approval​
CE, UL, cUL, FM, GL, DNV (module-dependent — rack itself is passive)

Key Features

  • 18-Slot UR2 Flexibility:​ Supports a single CPU with up to ~16 I/O/FM/CP modules centrally, or can be partitioned with Interface Modules (IM 460/461) to create a CR (Central Rack) + ER (Expansion Rack)​ in a multi-rack S7-400 system.
  • Standard 19" Width:​ Fits directly into control cabinet 19" uprights — no adapter plate needed.
  • Passive Backplane:​ No active electronics — reliability determined solely by inserted modules; bus continuity is factory-tested.
  • Future-Proof S7-400 Platform:​ Compatible with all current S7-400 CPUs and I/O modules — a single rack type covers most project sizes before needing ER/Distributed I/O.

Applications

  • Central Control Rack:​ Hosting CPU, PS, analog/digital I/O, and communication processors for a medium-complexity process cell or machine line.
  • Multi-Rack S7-400 Systems:​ Used as Central Rack (CR) with Interface Modules linking to Expansion Racks (ER1/ER2 via IM 460-1/461-1 or IM 470-1/471-1 over fiber or copper).
  • Retrofit / Brownfield:​ Replacement rack for aging S5 or early S7-400 installations — same footprint and slot numbering conventions.
  • Test / FAT Benches:​ Building a representative S7-400 configuration for factory acceptance testing prior to site commissioning.
Note: For smaller S7-400 racks, see UR1 (9 slots — 6ES7400-1TA11-0AA0). For redundant H-systems, both CPUs occupy slots in the same UR2 or separate UR2s with synchronization modules. The PS 407 power supply (e.g., 6ES7407-0KA02-0AA0 for 10A 120/230V AC)​ and CPU must be ordered separately. Slot 1 is reserved for PS 407; Slot 2 is the default CPU slot in a central configuration.
