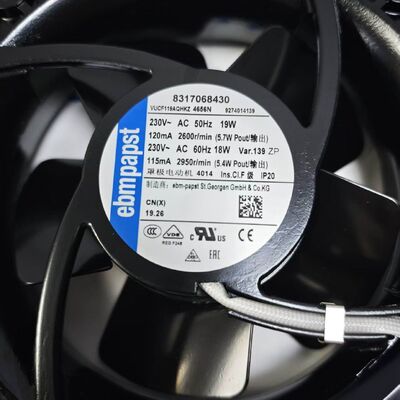

ebm-papst 4656N | 119×119×38mm AC Axial Fan 230V 160m³/h Ball Bearing — Type 4656N (Mat. VUCF119AQHKZ)

ebm-papst 4656N | 119×119×38mm AC Axial Fan 230V 160m³/h Ball Bearing — Type 4656N (Mat. VUCF119AQHKZ)
ebm-papst 4656N | 119×119×38mm AC Axial Fan 230V 160m³/h Ball Bearing — Type 4656N (Mat. VUCF119AQHKZ)
video play

Large Image :  ebm-papst 4656N | 119×119×38mm AC Axial Fan 230V 160m³/h Ball Bearing — Type 4656N (Mat. VUCF119AQHKZ) Get Best Price

Product Details:
Place of Origin: CN
Brand Name: ebmpapst
Certification: ATEX
Model Number: VUCF119AQHKZ 4656N
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S
Highlight:

230V AC axial fan

,

119mm ball bearing fan

,

160m³/h axial fan

ebm-papst 4656N | 119×119×38mm AC Axial Fan 230V 160m³/h Ball Bearing — Type 4656N (Mat. VUCF119AQHKZ)
ebm-papst 4656N compact AC axial fan, 230V 50/60Hz, 119×119×38mm, 160 m³/h airflow, 2650 rpm, ball bearing, metal impeller & housing. Material No. VUCF119AQHKZ.

Product Overview

The ebm-papst 4656N (Material No. VUCF119AQHKZ)​ is a single-phase AC compact axial fan​ from the 4000N series, designed for cabinet cooling, power supply ventilation, and electronic equipment heat dissipation. It features a 119 × 119 mm square flange, 38 mm depth, 230 V AC​ shaded-pole external rotor motor, and delivers 160 m³/h free delivery airflow​ at 2650 rpm. The impeller and housing are black-painted sheet steel / die-cast aluminum, equipped with ball bearings​ and impedance overload protection. Air is drawn in through the strut side (suction over bars); rotation is clockwise viewed from rotor side. Electrical connection is via 2 flat push-on terminals (3.0 × 0.5 mm)​ with grounding lugs.

Technical Specifications (Electrical & Performance)

Parameter
Specification
Type / Model​
4656N​ (ebm-papst 4000N Series)
Material No. (Global)​
VUCF119AQHKZ​
Supply Voltage​
230 V AC​ (50/60 Hz)
Power Input​
19 W (50 Hz) / 18 W (60 Hz)
Current Draw​
≈ 83 mA @ 230 V
Speed​
2650 min⁻¹​ (50 Hz) / ≈ 2950 min⁻¹ (60 Hz)
Air Flow (Free Delivery)​
160 m³/h (94 CFM)​ @ 50 Hz
Static Pressure (Max.)​
≈ 48 Pa
Sound Pressure Level​
47 dB(A)​ @ 1 m (50 Hz)
Motor Protection​
Impedance protection (overload)

Technical Specifications (Mechanical & Construction)

Parameter
Specification
Frame Size​
119 × 119 mm​ (Square Flange)
Depth / Thickness​
38 mm​
Impeller Material​
Sheet Steel, black painted
Housing Material​
Die-cast Aluminum / Sheet Steel, black painted
Bearing Type​
Ball Bearing​
Airflow Direction​
Suction through struts (inlet over bars), CW viewed toward rotor
Connection​
2 × Flat Terminals 3.0 × 0.5 mm​ + Grounding Lug (M4)
Ambient Temp. Range​
-40 … +85 °C​ (50 Hz) / -40 … +80 °C (60 Hz)
Service Life (L10)​
≈ 37,500 h @ 40 °C / 15,000 h @ max. temp
Weight​
≈ 0.55 kg
Protection Class​
IP20 (when installed in enclosure)
Approvals​
VDE, UL, CSA, CE, EAC

Key Features

  • External Rotor Shaded-Pole Motor:​ Maintenance-free, auto-starting, operates on 50/60 Hz without additional capacitors.
  • All-Metal Construction:​ Steel impeller + aluminum housing — robust and suitable for higher ambient temperatures vs. plastic fans.
  • Ball Bearing Design:​ Longer service life in varied mounting orientations compared to sleeve-bearing alternatives.
  • Compact 38 mm Profile:​ Fits standard 120 mm cutouts on electrical cabinets and enclosures.
  • Impedance Overload Protection:​ Built-in thermal protection against winding overheating.

Typical Applications

  • Electrical Cabinet Cooling:​ Control panels, VFD enclosures, server racks, and PLC cabinets.
  • Power Supply Ventilation:​ Heat extraction from SMPS, UPS, and inverter housings.
  • Industrial Electronics:​ Spot cooling for test equipment, amplifiers, and rack-mounted devices.
  • HVAC / Air Curtains:​ Small air-handling units and heat exchanger assisted airflow.
VUCF119AQHKZ is the ebm-papst Global Material Number for Type 4656N. Optional accessories: protective finger guard LZ20/LZ30 (metal) or LZ30P (plastic), outlet nozzle LZ37, connecting lead LZ120/LZ126. For auto-restart thermal protection or different termination, consult alternate 4656 variants (e.g. 4656Z).
