Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5

Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5
Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5 Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5

Large Image :  Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5 Get Best Price

Product Details:
Place of Origin: ID
Brand Name: Telemecanique
Certification: ATEX
Model Number: XCKMR54D1
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

Telemecanique XCKMR54D1 | OsiSense XC Heavy-Duty Limit Switch, Stay-Put Crossed Rod Lever, 2×(2 NC), Pg13.5

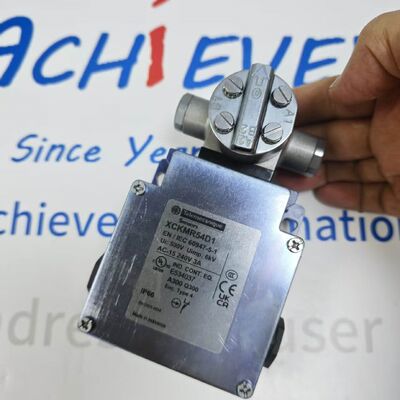

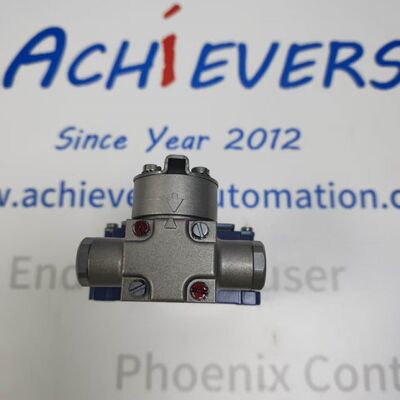

Telemecanique XCKMR54D1 OsiSense XC heavy-duty limit switch with stay-put crossed rods lever (6×200mm), 2×(2 NC) slow-break contacts, positive opening, IP66 metal body, Pg13.5 cable entries. 240V AC 10A Ith.

Product Overview

The Telemecanique XCKMR54D1​ (Schneider Electric OsiSense XC Special series) is a heavy-duty rotary-head limit switch​ designed for hoisting, crane travel limits, and mechanical handling applications. It features a fixed metal (Zamak) body​ with a stay-put crossed rods lever​ (6 mm square rod, 200 mm length) providing lateral approach from two directions. The contact arrangement is 2 × (2 NC) — slow-break, staggered (break-before-make)​ with positive opening (forced-guided contacts)​ per EN/IEC 60947-5-1 Appendix A for safety circuits. Three Pg 13.5 threaded cable entries​ accommodate cable glands (Ø 9–12 mm). Rated Ith = 10 A, AC-15: 240 V / 3 A, DC-13: 125 V / 0.55 A.

Technical Specifications (Electrical & Contact)

Parameter
Specification
Order Code​
XCKMR54D1​ (Schneider Electric / Telemecanique OsiSense XC)
Product Type​
Heavy-Duty Limit Switch — Rotary Head, Fixed Body
Contact Configuration​
2 × (2 NC)​ — Slow-Break, Staggered (Break-Before-Make)
Positive Opening (Force-Guided)​
Yes — per IEC 60947-5-1 Appendix A
Thermal Current (Ith)​
10 A​
Utilization Category — AC-15​
Ue = 240 V, Ie = 3 A​ (A300 coding)
Utilization Category — DC-13​
Ue = 125 V, Ie = 0.55 A​
Rated Insulation Voltage (Ui)​
300 V (UL 508) / 500 V (IEC 60947-1, Pollution Degree 3)
Rated Impulse Withstand (Uimp)​
6 kV
Electrical Connection​
Screw-Clamp Terminals, 1×0.5 … 2×2.5 mm²
Contact Resistance​
≤ 25 mΩ

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Actuator Type​
Stay-Put Crossed Rods Lever — Square Rod 6 mm, L = 200 mm, 2-Way Lateral Approach
Body / Head Material​
Zamak (Die-Cast Zinc Alloy)​ — Metal Enclosure
Cable Entry​
3 × Tapped for Pg 13.5 Cable Gland​ (cable Ø 9–12 mm)
Protection Rating​
IP66​ per IEC 60529 / IK07​ per IEC 62262
Min. Tripping Torque​
0.5 N·m
Positive Opening Min. Torque​
0.75 N·m
Operable Lever Angle​
±180° (actuation point 65–95 mm from pivot)
Mechanical Life​
2,000,000 cycles​
Operating Temp.​
-25 … +70 °C​ (some datasheets state -40 °C)
Dimensions (W × H × D)​
200 × 118 × 59 mm
Weight​
≈ 0.55 kg
Certifications​
UL 508, CSA C22.2 No.14, CE, CCC, IEC 60947-5-1

Key Features

  • Stay-Put Crossed Rod Lever:​ Spring-centered or maintained-position rod (depending on cam action) — ideal for crane end-of-travel and pantograph-style actuation from either direction.
  • Double 2-NC Slow-Break with Positive Opening:​ Suitable for safety-related control circuits requiring forced opening of NC contacts on actuator movement.
  • All-Metal Zamak Housing:​ Rugged construction for foundries, hoists, conveyors, and outdoor crane applications.
  • Three Pg13.5 Entries:​ Flexible conduit routing — unused entries plugged with supplied blanking plugs.
  • High Mechanical Durability:​ 2 million cycles in demanding industrial environments.

Typical Applications

  • Overhead Cranes & Hoists:​ End-of-travel / overtravel limit switches on bridge and trolley motion.
  • Conveyor Systems:​ Belt misalignment (run-off) detection and end-stop positioning.
  • Heavy Machinery:​ Press guards, elevator car position sensing, and mechanical interlock duties.
  • Mining / Foundry / Steel Mill:​ Where dust, splash, and mechanical shock demand IP66 + metal enclosure.
XCKMR54D1 belongs to the XC Special format sub-range of OsiSense XC. For versions with 1NO+1NC or snap-action contacts, or with M20 cable entries, refer to XCKMR series variants (e.g. XCKMR54D2 etc.). Replacement/modern equivalent under Schneider's current portfolio may be referenced as XCKMR54D1H29 in some regions — verify local catalog.
