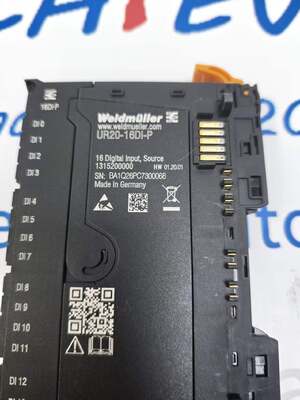

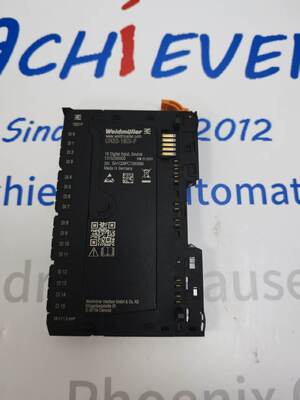

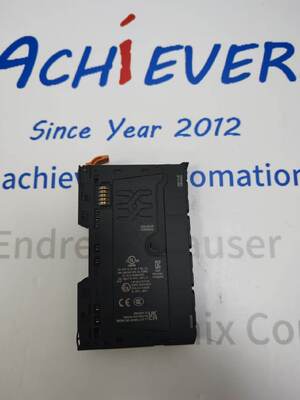

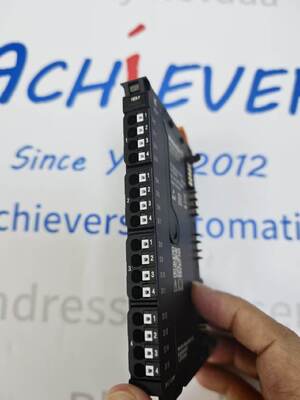

Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit

Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit
Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit

Large Image :  Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit Get Best Price

Product Details:
Place of Origin: DE
Brand Name: Weidmüller
Certification: ATEX
Model Number: UR20-16DI-P
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable

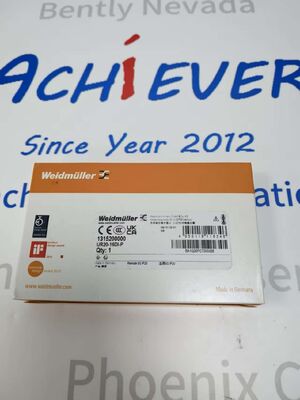

Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

Weidmüller UR20-16DI-P | u-remote 16-Channel 24V DC Digital Input Module, Sink/Source, P-Fit
Weidmüller UR20-16DI-P u-remote digital input module — 16 × 24 V DC inputs (Type 1/3, sink/source), 10 μs response time, pluggable spring terminals, P-coding. Fits UR20 couplers (PROFIBUS, EtherCAT, PROFINET, EtherNet/IP, Modbus TCP).

Product Overview

The Weidmüller UR20-16DI-P​ is a 16-channel digital input module​ for the u-remote (UR20) I/O system, designed to acquire 24 V DC binary signals​ from sensors, switches, or dry contacts. All 16 inputs are Type 1 / Type 3 compliant (IEC 61131-2)​ and accept sink (NPN) or source (PNP) wiring​ — the module detects the active state regardless of polarity to common 0 V or +24 V. Each channel has an individual status LED, and the module features a diagnostic LED (RUN/ERR). It connects to the u-remote backplane via the P-coded (P = Process data) system bus connector​ and uses plug-in spring-cage terminals (PUSH IN)​ for field wiring. Compatible with all UR20 fieldbus couplers (PROFINET, EtherCAT, EtherNet/IP, PROFIBUS DP-V1, Modbus TCP, CANopen, CC-Link).

Technical Specifications (Electrical & I/O)

Parameter
Specification
Order No. (Global)​
1315170000​ (UR20-16DI-P)
Series​
Weidmüller u-remote — UR20 IP20 Distributed I/O
Number of Channels​
16 × Digital Input (DI)​
Input Voltage (Nom.)​
24 V DC​ (Range 18 … 30 V DC per IEC 61131-2)
Input Type​
IEC 61131-2 Type 1 / Type 3, Sink (NPN) or Source (PNP) — polarity independent to common
Logic Level "1" (ON)​
≥ 15 V DC @ typ. 2.3 mA
Logic Level "0" (OFF)​
≤ 5 V DC
Input Delay / Filter Time​
Configurable via coupler/GSD — typ. 10 ms​ (can be set 0.1 / 1 / 3 / 10 / 20 ms)
Response Time (Signal → Process Image)​
≤ 10 μs​ (hardware) + software filter
Channel Isolation​
8 channels share one common (2 commons × 8 ch) — opto-isolated from system bus
Current Consumption from System Bus​
Typ. 70 mA (5 V DC backplane)​

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Module Width​
12.3 mm​ (standard UR20 slice width)
Termination Type​
PUSH IN spring-cage — pluggable orange terminal block (ZQV / PZB cross-connect possible)​
Conductor Size (Solid / Stranded)​
0.2 … 2.5 mm² / AWG 24–12
Stripping Length​
8 mm
Status Indicators​
16 × green LED (channel ON), 1 × green (RUN), 1 × red (ERR/DIAG)
Backplane Coding Pin​
P (Process Data Module — grey coding tab)​
Operating Temp.​
-25 … +60 °C​
Storage / Transport Temp.​
-40 … +85 °C
Humidity​
5 … 95 % RH, non-condensing
Degree of Protection​
IP20 (installed in cabinet)
Mounting​
35 mm DIN Rail (EN 60715 / TS 35)​ — snap-on with locking lever
Weight (Approx.)​
46 g
Certifications​
CE, UL 508, cULus, GL (Germanischer Lloyd), KC, EAC, RoHS / REACH

Key Features

  • 16 DI in 12.3 mm Width:​ Highest density in the u-remote family — minimizes panel space per I/O point.
  • Sink/Source (NPN/PNP) Universal Inputs:​ No need to stock separate sinking or sourcing modules — one part covers both sensor types.
  • Pluggable Terminal Block:​ Pre-wire field cables off-panel; snap module in/out for maintenance without disturbing wiring.
  • Fast Hardware Response (≤10 μs):​ Suitable for high-speed counting or fast event capture when used with high-speed DI modules (note: this is std. DI — for HSC use UR20-4DI-HS-P).
  • Diagnostics via LED + Coupler:​ Channel-level and module-error LEDs plus diagnostic telegrams to the PLC/master.

Typical Applications

  • Machine Control Cabinets:​ Reading limit switches, pushbuttons, light curtains, and prox sensors on packaging / converting / assembly lines.
  • Process Skids:​ Distributed DI acquisition via PROFINET/EtherNet/IP coupler in modular process units.
  • Retrofit / Expansion:​ Adding 16 digital inputs to existing UR20 station — no re-wiring of adjacent modules.
  • OEM Panel Build:​ Compact footprint with pluggable terminals simplifies FAT and field commissioning.
如需我把之前你问过的 Yokogawa FU20,Festo DSBC/ADN,SMC AW40, 1766 等产品也按这套最终版模板统一重出一份,告诉我即可.
