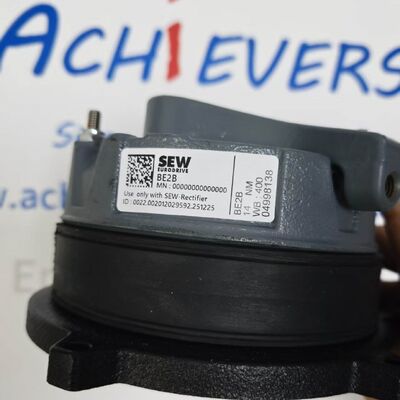

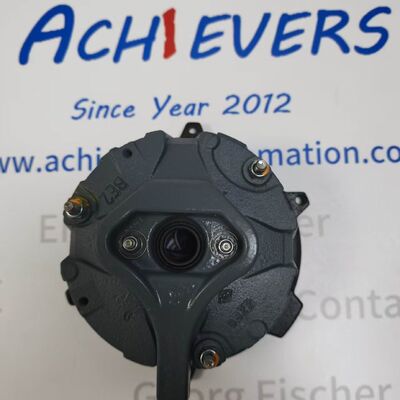

SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC

SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC
SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC

Large Image :  SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC Get Best Price

Product Details:
Place of Origin: DE
Brand Name: SEW EURODRIVE
Certification: ATEX
Model Number: BE2B
Document: ACH-AB-P+F-E+H-IFM-ASCO-YOK...WA.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: T/T,XT,ALIPAY
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Power Supply: 1 Ambient Temperature: -
Electrical Rating: G Certifications: S

SEW-EURODRIVE BE2B Brake | 20 Nm DC Disk Brake for DT/DV & R Series Gearmotors, 180V DC / 400V AC
SEW-EURODRIVE BE2B spring-applied electromagnetic disk brake — 20 Nm max holding torque, 180 V DC coil (via BG/BGE rectifier from 230/400 V AC). Fits DR..63–100 motors & R-series gearmotors. Manual release optional.

Product Overview

The SEW-EURODRIVE BE2B​ is a DC-operated electromagnetic spring-applied disk brake​ (fail-safe type) configured as a factory option on EURODRIVE® DT/DV AC motors and R/K/S/W series gearmotors. It is spring-closed (applied when de-energized)​ and electrically released​ via a half-wave or full-wave rectifier (BG/BGE) mounted in the motor terminal box. The BE2 size provides a maximum holding torque of 20 Nm​ (reducible to 5/10/14 Nm via spring package selection). It is typically specified with 180 V DC coil voltage​ (excited from 230 V AC single-phase or 400 V AC three-phase via rectifier). A manual brake release lever (B-suffix = with hand release; -B often denotes version with manual release)​ is optionally available. The BE2B is commonly paired with DR..71S–DR..100L motors.

Technical Specifications (Brake Performance & Electrical)

Parameter
Specification
Option Code​
BE2B​ (BE2 = Brake Size 2; B = with Manual Release / specific variant per SEW configurator)
Brake Type​
Fail-Safe Electromagnetic Disk Brake — Spring Applied, Electrically Released
Max. Holding Torque (MBmax)​
20 Nm​
Reduced Holding Torques (MBred)​
14 Nm / 10 Nm / 7 Nm / 5 Nm (via fewer brake springs)
Coil Rated Voltage (DC)​
180 V DC​ (typical — energized via BG/BGE rectifier)
Mains Supply to Rectifier​
Typically 230 V AC 50/60 Hz (1φ)​ for frames ≤100 or 400 V AC (3φ)​ for larger — matched by BG/BGE type
Brake Coil Power (Hold)​
≈ 17 W (typical for BE2)
Release Time (t₂)​
≤ 50 ms (typical, depends on rectifier & load inertia)
Apply Time (t₁)​
≤ 30 ms (typical, coil de-energized)
Switching Frequency (Max.)​
≤ 900 /h (recommended, with proper cooling)

Technical Specifications (Mechanical & Mounting)

Parameter
Specification
Applicable Motor Frames​
SEW DR..63 / 71 / 80 / 90 / 100 (DT/DV series) — also fits R-series non-flanged end shields
Brake Disk / Friction Material​
Sintered friction lining on non-asbestos backing
Manual Release​
Yes — Hand Lever (auto-reset) or Set Screw, depending on sub-suffix (B = with release)
Wear Indicator / Monitoring​
Optional — not standard on BE2; available on BMG safety brakes
Mass Moment of Inertia (J)​
≈ 1.65 × 10⁻⁴ kg·m²
Ambient Temperature​
-20 … +40 °C​ (extended -25 … +60 °C with special grease/rectifier)
Degree of Protection​
IP54 (as mounted on motor) / IP65 optional with sealed cover
Noise Level (Release)​
≤ 70 dB(A)
Conformity​
EN ISO 13849-1 (basic safety brake), EN 60204-1, IEC 60034-1

Key Features

  • Fail-Safe Spring-Applied Design:​ Brake engages automatically on power loss — no backup power required for holding.
  • Compact BE2 Form Factor:​ Optimized for DR..63–100 motor frames — minimal added axial length vs. larger BE5.
  • Torque Adjustable:​ Same physical brake size supports 5–20 Nm via interchangeable spring sets — avoids oversizing.
  • Integrated Rectifier Compatible (BG/BGE):​ Half-wave (BG) or electronic (BGE) rectifier snaps into motor terminal box — no external control cabinet component needed.
  • Manual Release Option (B-suffix):​ Mechanical hand lever or screw for manual brake disengagement during maintenance/jogging.

Typical Applications

  • Vertical Lift / Hoist Drives:​ R-series or K-series gearmotors on conveyor elevators, bucket elevators — holds load on power failure.
  • Indexing & Positioning Tables:​ Where rapid stop and static hold are required between cycles.
  • Crane Travel End-Stops:​ Small overhead crane/trolley travel drives needing fail-safe stopping.
  • Packaging / Converting Machinery:​ Web tension control or emergency stop holding on intermittent-motion equipment.
BE2B is an option code​ (not a standalone shippable part) — it is factory-mounted on the DE (Drive End) of a SEW DT/DV motor or gearmotor. Standalone brake spare part reference for BE2 20Nm with 180V DC coil and 400V AC rectifier is typically 4998316​ (verify per regional catalog). For safety-rated PL d "Safe Brake" function, specify BMG02 or BMG2 instead. Rectifier type (BG 1.4 / BGE 1.4 etc.) must match motor supply voltage and is ordered as part of the motor option string.
